Bush Hog BRC120
Double tap to zoom

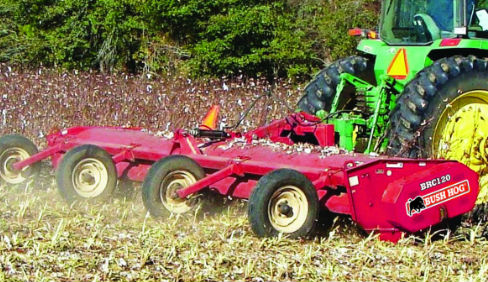

BRC Flail Crop Shredders BRC120
Overview:
The Bush Hog® line of BRC row crop flails provides superior shredding performance in a number of crop conditions… cotton, BT corn stalks, milo, rice, wheat and vegetable stubble are no match for these machines. Designed to handle higher volumes of crop residue, the BRC models from Bush Hog are equipped with a re-cutter bar design which allows the material to be cut three times thereby speeding up crop decomposition. Computer-balanced 10 3/4-inch diameter rotors ensure smooth operation in tough conditions. Triple-lipped, sealed double row spherical roller bearings, combined with reversible, hard surfaced cutter knives and 3/16-inch internal steel liners at critical wear areas, ensure greater reliability in tough conditions. Bush Hog® units are available in 15, 18, 20 and 25-foot operating widths to match various crop conditions and row spacings. Depending on the model, the BRC row crop flails are available with pull, lift or semi-mount hitches. These BRC row crop flails are ready to shred! - Less
The Bush Hog® line of BRC row crop flails provides superior shredding performance in a number of crop conditions… cotton, BT corn stalks, milo, rice, wheat and vegetable stubble are no match for these machines. Designed to handle higher volumes of crop residue, the BRC models from Bush Hog are equipped with a re-cutter... + Read More
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Performance Features
- Blades chop through tough cotton, BT corn stalks, milo, rice, wheat, or vegetable stubble
- Re-cutter bar speeds up decomposition of plant residue to get nutrients back into the ground quickly
- Frame provides ground cover to minimize wind and water erosion
- Available in 15, 18, 20, and 25-feet widths to fit your crop’s row spacing
Specifications
Models | BRC120 |
Cutting Width | 240-inches |
Overall Width | 264-inches |
Cutting Height | 1-inches to 18-inches |
Hitch Types | CAT II-III QH Lift, Semi-Mount, or Pull Type |
Cutter Shaft Diameter | 10-3/4-inches |
Min PTO HP Required | |
Lift | 130 HP |
Semi-Mount | 120 HP |
Pull-Type | 120 HP |
Gearbox Rating** | 207 HP |
PTO Type | 1,000 RPM |
Blades | |
Blade Tip Speed (FPM) | 12,620 |
No. of Blades | 216 |
Driveline Size | Cat. 5 or 6 |
Driveline Protection | 5 x 5V Banded Belt |
Rotor Bearing Protection | Anti-Wrap Seal Protector |
Cutter Shaft Bearings | 2 9/16-inches Double Row Spherical Roller, Triple Sealed |
Hood Thickness | 3/16-inch with 3/16-inch Internal Wear Liner |
End Plate Thickness | 1/4-inch |
No. of Axles | 4 |
Wheel Hub Size | 6-Bolt |
Tire Size/Type | 9.5L-15 Ribbed |
Safety Deflector Type | Standard |
Weight (Approx.) | 5,150-lbs. |
