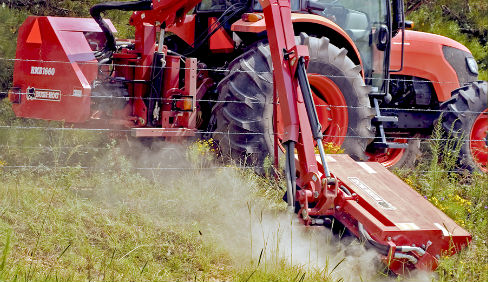

Bush Hog PT5-2 Powertrim

Double tap to zoom

RMB models offer optional accessories such as a lift float kit and skid kit on certain models.

FLAT HEAD Attachment ( Fitting the RMB1445 / RMB1660 / RMB1865 Boom Mowers) See Specifications for more details.
CUTTER BAR Attachment ( Fitting the RMB1445 / RMB1660 / RMB1865 Boom Mowers) See Specifications for more details.
ROTARY HEAD Attachment ( Fitting the RMB1445 / RMB1660 / RMB1865 Boom Mowers) See Specifications for more details.
PT5-2 POWERTRIM 3/4” Cutting Capacity 59” Cutting Width (All booms equipped with hydraulic or mechanical breakaway.)
RMB1445-1, RMB1660-1, RMB1865-1 (RMB models to be used on tractors equipped with cabs only.)
All RMB models offer self contained, fully independent hydraulic systems with twin pumps for optimum cutting performance
The unique PT5 is powered by the tractor’s hydraulic system, requiring only 3.7 gal/min. flow to operate the unit. A Flow Control Valve Kit comes standard on current models to divert excess hydraulic flow back to the tractor. The PT5 fits tractors as small as 15 HP. Its unique “swing over” design enables the unit to work on either side of the tractor. The PT5 is equipped with a swing arm, sickle bar head to meet the pruning needs of horticulturists and landscapers alike.

BOOM MOWERS:	PT5-2 Powertrim
Tractor Engine HP / Weight (Min.)
Tractor PTO	NA
Machine Weight w/Flail*	397 lbs
Hydraulic System	Open Center Hydraulics System Only. Tractor Remote Outlet. 3.7 - 5.6 GPM. Flow Range Flow Control Valve Kit Comes Standard on Current Models
Attachment Method	Cat. I/II, 3 Pt. Mount
Controls	Cable Controlled
Max Reach, Horizontal (A)	12’-4”
Max Height, Horizontal (B)	7’-2”
Max Height, Horizontal (C)	10’-6”
Max Height, Vertical (D)	16’-3”
Max Depth, 45° (E)	4’- 6”
