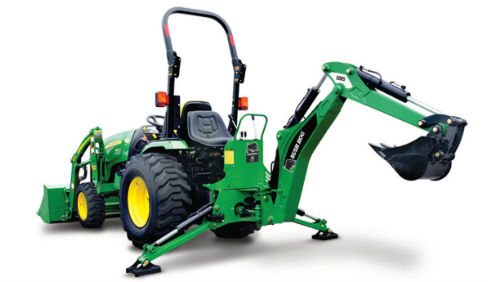

Bush Hog XD65 Backhoe
Backhoes XD65 Backhoe
Overview:
Break ground, not your back!
Easily access those tight work spaces and get down to some digging. Bush Hog®’s new line of XD series backhoes are designed for tractors
ranging from 18 to 100 horsepower along with skid steers and mini skid steers depending on the model. Perfect for digging footers, trenches and all g... + Read More
Features
Performance Features
- Digging Depth (2 ft. flat bottom): 6’4”
- Overall Operating Height (fully raised): 92”
- Reach from Swing Post: 100”
- Bucket Rotation: 180°
- Swing Arc: 180°.
Safety Features
- Stabilizer Width: 74”
Specifications
| Model | XD65 |
| Transport Height (with boom fully retracted) | 63" |
| Transport Width (with stabilizers up) | 40" |
| Loading Height (bucket at 60° rotation) | 62" |
| Ground Clearance | 10 1/2" |
| Transport Length | 68" |
| Transport Weight (base unit only - no bucket or mounts) | 575 lbs. |
| Digging Depth (2 ft. flat bottom) | 6'4" |
| Overall Operating Height (fully raised) | 92" |
| Reach from Swing Post | 100" |
| Bucket Rotation | 180° |
| Swing Arc | 180° |
| Stabilizer Width (Spread) | 74" |
| Stabilizer Width (Transport) | 40" |
| Operating Pressure | 1800 psi |
| SAE* Dipper Boom Digging Force | 1250 lbs. |
| SAE* Bucket Digging Force | 2600 lbs. |
| Boom Lift Capacity (end of dipper 3' from ground) | 385 lbs. |
| Hydraulic Volume Requirements | 5-7 gpm* |
| Flow Divider | - |
| Recommended Tractor HP | 18-30 HP |
| Recommended Skidsteer Requirements | Mini Skidsteer |
| Bucket Sizes Available | 9, 12, 15, 18 |
| 3 Point Hitch | Cat I (PT300) |
| Cylinder Diameters | |
| Main Boom Cylinder Diameter | 3.0 |
| Dipper Cylinder Diameter | 2.25 |
| Bucket Cylinder Diameter | 2.0 (x2) |
| Swing Cylinder Diameter | 2.25 |
| Stabilizer Cylinder Diameter | 2.0 |
| Extender Cylinder Diameter | - |
