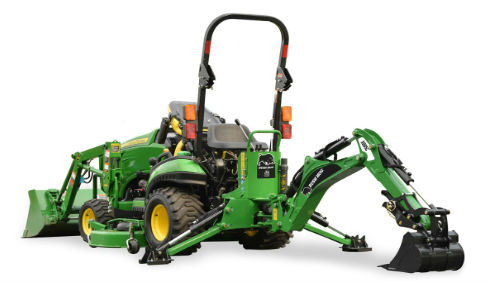

Bush Hog XD65C Backhoe
Backhoes XD65C Backhoe
Overview:
Bush Hog® XD65C
XD Series Backhoe
Break ground, not your back!
Easily access those tight work spaces and get down to some digging. Bush Hog®’s new line of XD series backhoes are designed for tractors ranging from 18 to 100 horsepower along with skid steers and mini skid steers depending on the model. Perfect for dig... + Read More
Features
Performance Features
- Digging Depth (2 ft. flat bottom): 6’4”
- Overall Operating Height (fully raised): 91”
- Reach from Swing Post: 100”
- Bucket Rotation: 180°
- Swing Arc: 150°
Safety Features
- Stabilizer Width: 72”
Specifications
| Model | XD65C |
| Transport Height (with boom fully retracted) | 64.5" |
| Transport Width (with stabilizers up) | 41" |
| Loading Height (bucket at 60° rotation) | 62" |
| Ground Clearance | 8 1/2" |
| Transport Length | 56" |
| Transport Weight (base unit only - no bucket or mounts) | 500 lbs. |
| Digging Depth (2 ft. flat bottom) | 6'4" |
| Overall Operating Height (fully raised) | 91" |
| Reach from Swing Post | 100" |
| Bucket Rotation | 180° |
| Swing Arc | 150° |
| Stabilizer Width (Spread) | 72" |
| Stabilizer Width (Transport) | 41" |
| Operating Pressure | 1800 psi |
| SAE* Dipper Boom Digging Force | 1250 lbs. |
| SAE* Bucket Digging Force | 2054 lbs. |
| Boom Lift Capacity (end of dipper 3' from ground) | 250 lbs. |
| Hydraulic Volume Requirements | 3½-6 gpm* |
| Flow Divider | - |
| Recommended Tractor HP | 18-28 HP |
| Recommended Skidsteer Requirements | Mini Skidsteer |
| Bucket Sizes Available | 9, 12, 15, 18 |
| 3 Point Hitch | n/a |
| Cylinder Diameters | |
| Main Boom Cylinder Diameter | 2.5 |
| Dipper Cylinder Diameter | 2.25 |
| Bucket Cylinder Diameter | 2.5 (x1) |
| Swing Cylinder Diameter | 2 |
| Stabilizer Cylinder Diameter | 2 |
| Extender Cylinder Diameter | - |
