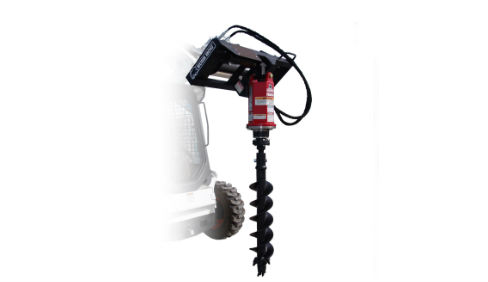

Bush Hog PHDHF15
PHD Series Hydraulic Post Hole Digger PHDHF15
Overview:
Drive Type: Planetary w/Rev. Motor
Std. Digging Depth: 48-inches
Features
Performance Features
- Planetary Hydraulic drive features high torque level to power through the most demanding conditions.
- All augers are heavy industrial grade with 3/8-inch thick flighting.
- Sized in diameters from 6-inches to 36-inches (depending on model)
- Excellent for all soil conditions and solid rock.
Construction Features
- Farm and Ranch PHDHF Series features a selection of mounting brackets for skid steer loaders and front end loaders.
- Commercial Grade PHDHC Series features mounting brackets for excavators, skid steer loaders, backhoes and front end loaders.
- All mounting brackets have a dual swivel feature that keeps the auger vertical while digging.
Product Features
- HRAD* AUGER HEAD
- HSRA* AUGER HEAD
- HSDA* AUGER HEAD
- T-POST* AUGER HEAD
Specifications
| Model | PHDHF15 |
| Drive Type | |
| Shaft Output Size | 2-inches Hex |
| Maximum Output Torque* | 1419-feet lbs. |
| Recommended Hyd. Flow | 6 to 15 GPM |
| Max. System Pressure | 3,000 PSI |
| Drive Protection | Hydraulic Relief Valve |
| Hydraulic Hoses | 1/2-inch x 8-feet with 10 MB ends. |
| Type of Mounts | Loader Bucket, Skid Steer Universal, Euro |
| Max. Auger Diameter (Rock) | N/A |
| Max. Auger Diameter (Dirt) | 18-inches |
| Standard Digging Depth | 48-inches |
