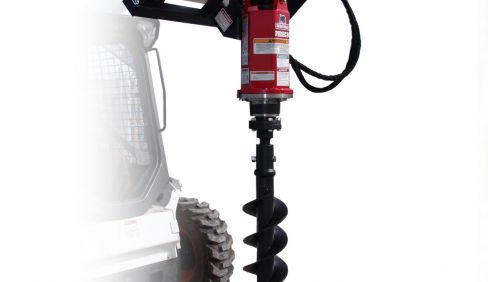

Bush Hog PHD Series Hydraulic Post Hole Digger
Post Hole Diggers PHD Series Hydraulic Post Hole Digger
Overview:
The Bush Hog® Planetary Hydraulic drive features a high torque level to power the auger through the most demanding conditions. All augers are heavy industrial grade with 3/8-inch thick flighting. Sized in diameters from 6-inches to 36-inches (depending on model), our Post Hole Diggers are excellent for all soil conditions and solid rock.
Features
Performance Features
- Planetary Hydraulic drive features high torque level to power through the most demanding conditions.
- All augers are heavy industrial grade with 3/8-inch thick flighting.
- Sized in diameters from 6-inches to 36-inches (depending on model)
- Excellent for all soil conditions and solid rock.
Construction Features
- Farm and Ranch PHDHF Series features a selection of mounting brackets for skid steer loaders and front end loaders.
- Commercial Grade PHDHC Series features mounting brackets for excavators, skid steer loaders, backhoes and front end loaders.
- All mounting brackets have a dual swivel feature that keeps the auger vertical while digging.
Specifications
| Model | PHDHF15 | PHDHF20 | PHDHF30 | PHDHC20 | PHDHC30 | PHDHC35 |
|---|---|---|---|---|---|---|
| Drive Type | Planetary With Reversible Motor | |||||
| Shaft Output Size | 2-inches Hex | 2-inches Hex | 2-inches Hex | 2-inches Hex | 2-inches Hex | 2-inches Hex |
| Maximum Output Torque* | 1419-feet lbs. | 1777-feet lbs. | 2632-feet lbs. | 2008-feet lbs. | 2937-feet lbs. | 3582-feet lbs. |
| Recommended Hyd. Flow | 6 to 15 GPM | 10 TO 20 GPM | 15 TO 30 GPM | 10 to 20 GPM | 15 to 30 GPM | 20 to 35 GPM |
| Max. System Pressure | 3,000 PSI | 3,000 PSI | 3,000 PSI | 3,000 PSI | 3,000 PSI | 3,000 PSI |
| Drive Protection | Hydraulic Relief Valve | |||||
| Hydraulic Hoses | 1/2-inch x 8-feet with 10 MB ends. | |||||
| Type of Mounts | Loader Bucket, Skid Steer Universal, Euro | Loader Bucket, Skid Steer Universal, Euro, backhoe | ||||
| Max. Auger Diameter (Rock) | N/A | 9-inches | 12-inches | 24-inches | 36-inches | 36-inches |
| Max. Auger Diameter (Dirt) | 18-inches | 30-inches | 36-inches | 30-inches | 36-inches | 36-inches |
| Standard Digging Depth | 48-inches | 48-inches | 48-inches | 48-inches | 48-inches | 48-inches |
| Warranty | 2 Years | Limited 5 Years Limited | ||||
| *All values are theoretical. Specifications and models are subject to change without notice. |
|---|
