Bush Hog PHD2402 Post Hole Digger
Post Hole Diggers PHD2402 Post Hole Digger
Overview:

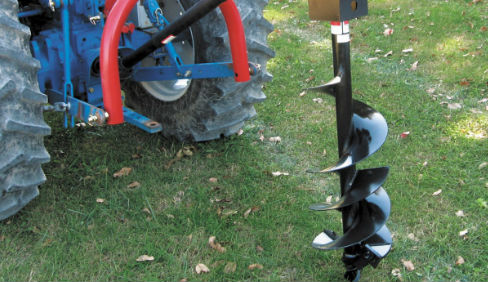

Bush Hog® PHD2402 Post Hole Digger
PHD2400 Series
Augers… the heart of the digger
Whether you need to drill holes for posts, tree plantings, structural support members or other tasks, Bush Hog® has a post hole digger to meet your needs. Our three 2400 Series models fit both Cat. 1 and Cat. 2 tractors. Augers are of... + Read More
Features
Performance Features
- Heavy duty augers equipped with double flighting for more cutting surfaces and faster digging
- Special alloy pinion gears and tapered roller bearings on both sides of each gear
Construction Features
- 2400 Series model fits both Cat. 1 and Cat. 2 tractors
- Offered in both standard and heavy duty versions in sizes from 6-inches to 24-inches
- Rugged gearbox construction
- Shear pin driveline protection
- Options include Hydraulic Down Force Kit, Parking Stand, and Auger Extensions
Product Features
- 2” Round hub connection
- Replaceable drill teeth
- Heavy duty augers equipped with double flighting for more cutting surfaces and faster, easier digging—especially in heavier soils
- Rugged gearbox construction
- Special alloy pinion gears and tapered roller bearings on both sides of each gear
- Shear pin driveline protection
Specifications
| Specification | PHD2402 |
| Auger Length | HD 42” RD/48” |
| Auger Diameter | 6 in., 9 in. or 12 in. Reg. Duty; 6 in., 9 in., 12 in., 18 in. or 24 in. Heavy Duty |
| Auger RPM | 170 |
| Type Hitch | Cat. I and II |
| Input RPM | 540 |
| Gear Ratio | 3.18:1 |
| Output Shaft | 2 in. Diameter |
| Driveshaft | ASAE Cat. III |
| Hitch Yoke | 2- 7/8 in. tubing |
| Boom | 3- 1/2 in. tubing |
| Component Protection | Shear bolt |
| Options (All Models) | Hydraulic Down Force Kit / Parking Stand / Auger Extensions |
