Bush Hog CRB SERIES

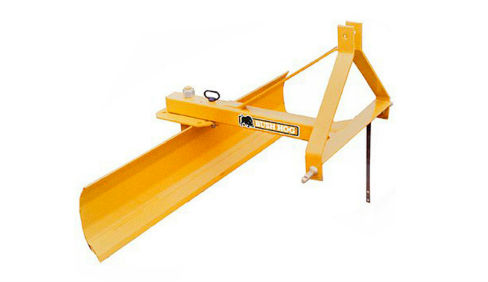

Compact Rear Mounted Blades CRB SERIES
Overview:
Bush Hog’s compact rear blades are the ideal choice for light duty landscaping, driveway maintenance, or snow removal. These light duty blades are rated for use on two-wheel drive tractors up to 24 PTO horsepower and four-wheel drive tractors up to 15 PTO horsepower. The moldboard may be reversed for backfilling and an... + Read More
Features
Performance Features
- Three angle position moldboard
- Reversible moldboard
- Available in tractor colors
- Quick hitch capable
- Lower hitch position for small tractors
Construction Features
- A Frame Construction
- 1/4 Inch Moldboard
- Welded On Cutting Edge
- Powder Coat Paint
Specifications
| MODEL | CRB SERIES |
| MOLDBOARD WIDTH | 4, 5 & 6 ft. |
| MOLDBOARD HEIGHT AND THICKNESS | 12 in. x 1/4 in. |
| MOLDBOARD CUTTING EDGE | 3/8 in. x 3 in. |
| HITCH | 3-Pt. Cat. l, Cat I Quick Hitch |
| APPROXIMATE WEIGHT | 136 lbs. (4 ft.), 150 lbs. (5 ft.), 164 lbs. (6 ft.) |
| MAX. TRACTOR HP (PTO) 2-WHEEL DRIVE | 24 HP |
| MAX. TRACTOR HP (PTO) FRONT WHEEL ASSIST | 15 HP |
| KING PIN DIAMETER | 1 1/4 in. Grade 8 |
| TILT ADJUSTMENT | 3-Pt. Hitch |
| OFFSET ADJUSTMENT | None |
| ANGLE ADJUSTMENT | 5 forward positions up to 30º, 3 reverse positions up to 15º |
| SKID SHOES | N/A |
| END PLATES | N/A |
| PARKING STAND | N/A |
| HYDRAULICS | N/A |
| FEATURE: Available in major tractor colors |
|---|
| SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE |
