Bush Hog 100 Series

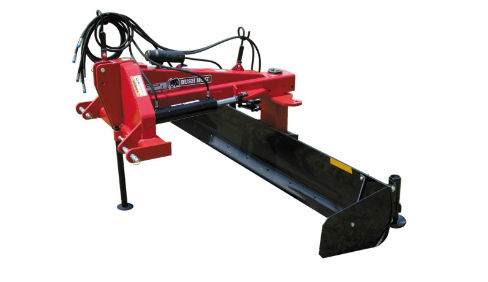

Rear Mounted Blades 100 Series
Overview:
The 100 Series Rear Blades are the ideal choice for heavy-duty grading chores around the farm such as road construction, terracing, dam building, snow removal, and cleaning out feed lots.
These blades offer a choice of manual or hydraulic tilt, angle, and offset adjustments. Moldboard can be reversed for back fillin... + Read More
Features
Performance Features
- 100 Series is available in 8 ft. & 9 ft. operating widths.
- Manual or Hydraulic Tilt, Angle and Offset Adjustments
- Reversible Cutting Edge
- Standard Parking Stand
Construction Features
- Heavy-Duty Mainframe
- High-Strength Reinforced Moldboard
- Tubular Construction
- A Frame Construction
- Powder Coat Paint
- Heavy-Duty King Pins
Specifications
| MODEL | 100 SERIES |
| MOLDBOARD WIDTH | 8 and 9 ft. |
| MOLDBOARD HEIGHT AND THICKNESS | 17 in. x 3/8 in. |
| MOLDBOARD CUTTING EDGE | 1/2 in. x 6 in. |
| HITCH | 3-Pt. Cat. lI & III I Quick Hitch |
| APPROXIMATE WEIGHT | 942 lbs. (8 ft.), 975 lbs. (9 ft.) |
| MAX. TRACTOR HP (PTO) 2-WHEEL DRIVE | 8 ft. 125 HP, 9 ft. 95 HP |
| MAX. TRACTOR HP (PTO) FRONT WHEEL ASSIST | 8 ft. 105 HP, 9 ft. 80 HP |
| KING PIN DIAMETER | 3 in. |
| TILT ADJUSTMENT | 15º up or down (manual or hyd.) |
| OFFSET ADJUSTMENT | 30 in. left or right (manual or hyd.) |
| ANGLE ADJUSTMENT | 45º left or right (in forward and reverse position, manual or hyd.) |
| SKID SHOES | Optional |
| END PLATES | Optional |
| PARKING STAND | Standard |
| HYDRAULICS | Optional |
| ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE. |
|---|
