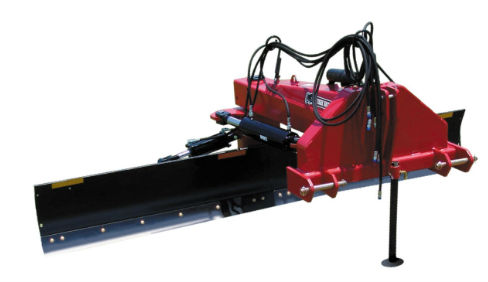

Bush Hog 225 Series
Rear Mounted Blades 225 Series
Overview:
The heavy-duty design and construction of the 225 Series make them ideal for the most rugged grading jobs. The precision-formed moldboards are reinforced to withstand the most demanding conditions and can be reversed for back filling. This top-of-the-line blade is rated for use on higher horsepower tractors and feature... + Read More
Features
Performance Features
- 225 Series is available in 8, 10 and 12-foot operating widths.
- Tilt, Angle and Offset Adjustments
- Reversible Cutting Edge
- Standard Parking Stand
Construction Features
- Heavy-Duty Mainframe
- High-Strength Reinforced Moldboard
- Tubular Construction
- A Frame Construction
- Double Strap Hitch
- Powder Coated Paint
- Heavy-Duty King Pins
Specifications
| MODEL | 225 SERIES |
| MOLDBOARD WIDTH | 8, 10 & 12 ft. |
| MOLDBOARD HEIGHT AND THICKNESS | 20 in. x 1/2 in. |
| MOLDBOARD CUTTING EDGE | 1/2 in. x 6 in. |
| HITCH | 3-Pt. Cat. lI & III I Quick Hitch |
| APPROXIMATE WEIGHT | 2120 lbs. (8 ft.), 2260 lbs. (10 ft.), 2400 lbs. (12 ft.) |
| MAX. TRACTOR HP (PTO) 2-WHEEL DRIVE | 8 ft. 250 HP, 10 ft. 225 HP, 12 ft. 175 HP |
| MAX. TRACTOR HP (PTO) FRONT WHEEL ASSIST | 8 ft. 225 HP, 10 ft. 200 HP, 12 ft. 160 HP |
| KING PIN DIAMETER | 4 1/2 in. |
| TILT ADJUSTMENT | 15º up or down (hydraulic) |
| OFFSET ADJUSTMENT | 46 in. left or right (hydraulic) |
| ANGLE ADJUSTMENT | 45º left or right (in forward and reverse position, hydraulic) |
| SKID SHOES | Optional |
| END PLATES | Optional |
| PARKING STAND | Standard |
| HYDRAULICS | Standard |
| ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE. |
|---|
NOTE: 225 and 300 Series blades not warrantied for use on track-type tractors. |
