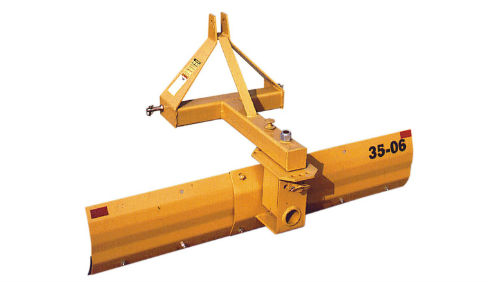

Bush Hog 35 Series
Rear Mounted Blades 35 Series
Overview:
Whether you are a budget-minded landscape contractor considering a blade for your jobsite, or a homeowner interested in landscaping or snow removal, the 35 Series has what you’re looking for. These utility blades are rated for use on two-wheel drive tractors up to 35 PTO horsepower and four-wheel drive tractors up to 3... + Read More
Features
Performance Features
- Available in 4, 5, 6 and 7 ft. operating widths.
- Quick Hitch Compatible
- Reversible Cutting Edge
- Angle & Tilt Adjustment
- Fits Tractors Up To 35 PTO HP
Construction Features
- Tubular Construction
- A Frame Construction
- Reversible Cutting Edge
- Powder Coat Paint
Specifications
| MODEL | 35 SERIES |
| MOLDBOARD WIDTH | 4, 5, 6, and 7 ft. |
| MOLDBOARD HEIGHT AND THICKNESS | 14.5 in. x 1/4 in. |
| MOLDBOARD CUTTING EDGE | 1/2 x 3 in. Reversible |
| HITCH | 3-Pt. Cat. l Cat I Quick Hitch |
| APPROXIMATE WEIGHT | 250 lbs. (4 ft.), 280 lbs. (5 ft.), 290 lbs. (6 ft.) 325 lbs. (7 ft.) |
| MAX. TRACTOR HP (PTO) 2-WHEEL DRIVE | 35 HP |
| MAX. TRACTOR HP (PTO) FRONT WHEEL ASSIST | 30 HP |
| KING PIN DIAMETER | 1-1/4 in. Grade 8 |
| TILT ADJUSTMENT | 15º up or down |
| OFFSET ADJUSTMENT | 12 in. left or right (manual) |
| ANGLE ADJUSTMENT | 5 forward positions up to 30º, 3 reverse positions up to 15º |
| SKID SHOES | N/A |
| END PLATES | N/A |
| PARKING STAND | N/A |
| HYDRAULICS | N/A |
| ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE. |
|---|
