Bush Hog 50 Series

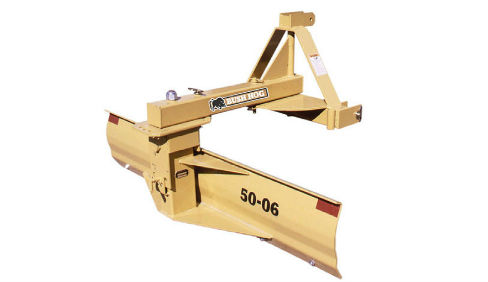

Rear Mounted Blades 50 Series
Overview:
Ideal for jobsites, landscaping, snow removal, and homeowners, the 50 Series is the first choice for those who need a 50 PTO horsepower rated blade with the features and capabilities of a much heavier unit. Available in 6 & 7 ft. operating widths. Both the 35 and 50 Series blades feature tilt, angle, and offset adjustm... + Read More
Features
Performance Features
- 50 Series is available in 6 ft & 7 ft. operating widths.
- Tilt, Angle and Offset Adjustments
- Reversible Cutting Edge
- Standard Parking Stand
- Double Strap Hitch (50 Series)
- Quick Hitch Compatible
- Available in Tractor Colors
Construction Features
- Tubular Construction
- A Frame Construction
- Double Strap Hitch (50 Series)
- Reversible Cutting Edge
- Powder Coat Paint
Specifications
| MODEL | 50 SERIES |
| MOLDBOARD WIDTH | 6 and 7 ft. |
| MOLDBOARD HEIGHT AND THICKNESS | 15-7/8 in. x 1/4 in. |
| MOLDBOARD CUTTING EDGE | 1/2 in. x 6 in. Reversible |
| HITCH | 3-Pt. Cat. l Cat I Quick Hitch |
| APPROXIMATE WEIGHT | 403 lbs. (6 ft.), 430 lbs. (7 ft.) |
| MAX. TRACTOR HP (PTO) 2-WHEEL DRIVE | 50 HP |
| MAX. TRACTOR HP (PTO) FRONT WHEEL ASSIST | 40 HP |
| KING PIN DIAMETER | 1-1/4 in. Grade 8 |
| TILT ADJUSTMENT | 15º up or down |
| OFFSET ADJUSTMENT | 23 in. left or right (manual) |
| ANGLE ADJUSTMENT | 5 forward positions up to 30º, 3 reverse positions up to 15º |
| SKID SHOES | N/A |
| END PLATES | N/A |
| PARKING STAND | Standard |
| HYDRAULICS | N/A |
| ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE. |
|---|
