Bush Hog 91 Series

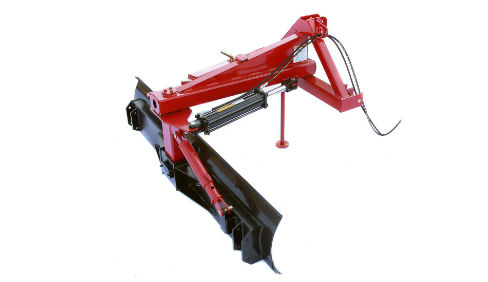

Rear Mounted Blades 91 Series
Overview:
The rugged construction of the 91 Series rear blades makes them ideal for a wide variety of applications, ranging from general road maintenance to ditching, snow removal, and terracing jobs. They are rated for use on tractors up to 90 PTO horsepower, and come in an 8-foot width. Both the 70 Series and 91 Series feature... + Read More
Features
Performance Features
- 91 Series is available in 7 ft. & 8 ft. operating widths.
- Tilt, Angle and Offset Adjustments
- Reversible Cutting Edge
- Standard Parking Stand
Construction Features
- Heavy-Duty Mainframe
- High-Strength Reinforced Moldboard
- Tubular Construction
- A Frame Construction
- Powder Coat Paint
- Heavy-Duty King Pins
Specifications
| MODEL | 91 SERIES |
| MOLDBOARD WIDTH | 7 and 8 ft. |
| MOLDBOARD HEIGHT AND THICKNESS | 16 x 3/8 in. |
| MOLDBOARD CUTTING EDGE | 1/2 x 6 in. Reversible |
| HITCH | 3-Pt. Cat. l & II |
| APPROXIMATE WEIGHT | 703 lbs. (7 ft.), 740 lbs. (8 ft.) |
| MAX. TRACTOR HP (PTO) 2-WHEEL DRIVE | 90 HP |
| MAX. TRACTOR HP (PTO) FRONT WHEEL ASSIST | 70 HP |
| KING PIN DIAMETER | 3 in. |
| TILT ADJUSTMENT | 15º up or down (manual or hyd.) |
| OFFSET ADJUSTMENT | 30 in. left or right (manual or hyd.) |
| ANGLE ADJUSTMENT | 45º left or right in forward position, 20º left or right in rev. position (manual or hyd.) |
| SKID SHOES | Optional |
| END PLATES | N/A |
| PARKING STAND | Standard |
| HYDRAULICS | Optional |
| ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE. |
|---|
