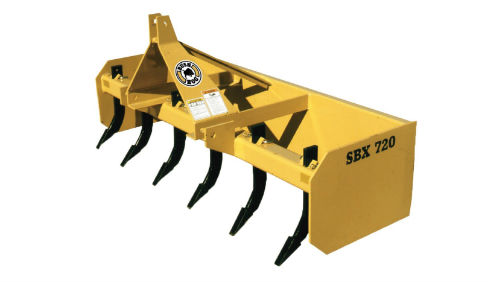

Bush Hog SBX65
SBX Series Box Blades SBX65
Overview:
The Bush Hog® SBX Series Box Blades are exceptional tools when the job requires grading, leveling or back filling. The scarifiers have three adjustable height positions and replaceable heat-treated tips for extended wear. Two 1/2 x 6-inch heat-treated, reversible and replaceable cutting edges smooth even the roughest g... + Read More
Features
Performance Features
- Heavy-Duty A Frame with Category 1 Quick Hitch
- Heat-Treated Scarifier Teeth
- Heavy-Duty Double Strap Hitch
- Reversible, Replaceable Cutting Edges
- Heavy-Duty End Plates
- Strong Tubular Construction
- Deep 21 ½” Box height
- Powder Coat Paint
- Available in Major Tractor colors
- SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
Specifications
| Model | SBX65 |
| Working Width | 65 inches |
| Moldboard Height | 18 inches |
| Box Depth | 24 inches |
| Box Depth | 24 inches |
| Overall Depth | 29 inches |
| Overall Height | 35-1/4 inches |
| Overall Width | 66 inches |
| Side Sheet Thickness | 3/8 inches |
| Scarifier Size | 3/4 inches x 21/2 inches |
| Number of Teeth | 5 |
| Hitch | ASAE Category 1 & Quick Hitch |
| Lower Hitch | Double Lug |
| Cutting Edge | - |
| Number of Blades | 2 |
| Maximum HP Requirements | 50 (2WD), 35 (4WD) |
| SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE | |
