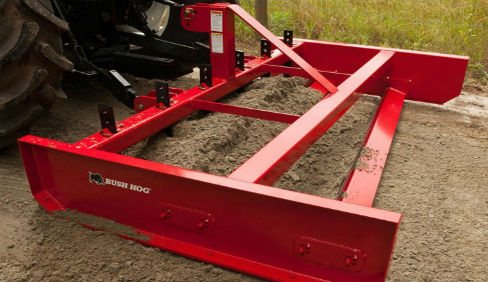

Bush Hog HDRG84
HDRG Series Road Grader HDRG84
Overview:
The new Bush Hog® Heavy Duty Road Grader is available in 7-feet and 8-feet operating widths. The HDRG’s heavy duty construction boasts a weight of up to 828-lbs., enabling it to tackle any grading job. The HDRG’s design features all-welded construction, a max rating up to 90 HP, and two offset and angled scraper blades... + Read More
Features
Performance Features
- Category I, II Quick Hitch Compatible
- All Welded Steel Frame Construction
- Cutting Edge Height Adjustment
- Recommended for up to 90 HP
- Four Position Adjustable Scarifier Shanks
- Dual Replaceable and Reversible
- Heat-treated Cutting Edges
- Available in Tractor Colors
Product Features
- Four-position hardened steel shanks
Specifications
| Models | HDRG84 |
| Hitch | 3-Pt. Cat I & II QH |
| Recommended HP | 90 (2WD), 70 (4WD) |
| Working Width | 84-inches |
| Side Panel Thickness | 3/16-inch |
| Front Main Beam | 4-inches x 4-inches x 3/8-inch |
| Rear Beam Construction | 4-inches x 4-inches x 1/4-inch |
| Skid Shoe Construction | 1/2-inch x 2 1/2-inches |
| Scarifier Shanks | Four Position Shanks with Hardened Tips |
| Number of Scarifier Shanks | 6 |
| Cutting Edges | 1/2-inch x 6-inches Bolt on Replaceable & Reversible Heat Treated Blades |
