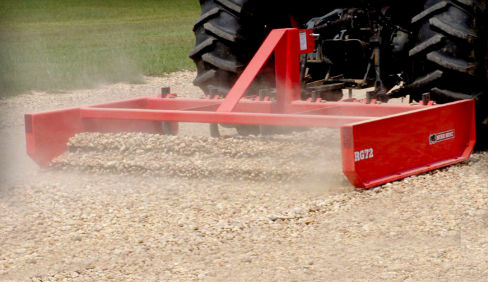

Bush Hog RG60 Series
RG Series Road Grader RG60 Series
Overview:
Bush Hog® Road Grader Blades fit a wide range of tractors. The Heavy-Duty, CAT I three-point hitch, 4 in. x 4 in. mainframe and double-lug lower hitch points help ensure performance and reliability. Shearing action of the material being worked is provided by two, reversible, high carbon steel cutting edges. One edge mo... + Read More
Features
Performance Features
- The Heavy-Duty, CAT I three-point hitch
- 4 in. x 4 in. mainframe and double-lug lower hitch points
- Two, reversible, high carbon steel cutting edges. One inside and the mounted on the back side allow the blade to be operated in forward or reverse.
- Maximum penetration in hard-packed material is accomplished by the scarifier kit which has a maximum working depth of 3 in.
Product Features
The Heavy-Duty, CAT I three-point hitch with 4 in. x 4 in. mainframe and double-lug lower hitch points
High quality Welds for Long lasting durability
Two, reversible, high carbon steel cutting edges. Skid Shoe Construction: 3/8 in. x 2-1/2 in. x 46-3/4 in. long
Specifications
| Model Number | RG60 Series |
| Hitch | Cat. 1 Std and QH |
| Recommend HP, 2WD / (FWA) | 50 / (40) |
| Working Width | 60 in. |
| Weight (lbs.) | 500 |
| Side Panel Thickness | 3/16 in. |
| Front Main Beam Construction | 4 in. x 4 in. x 5/16” wall |
| Rear Beam Construction | 2-1/2 in. x 2-1/2 in. x 3/16 in. wall |
| Skid Shoe Construction | 3/8 in. x 2-1/2 in. x 46-3/4 in. long |
| Scarifier Shanks | Three position shanks with dimpled-on hardened tips |
| Number of Scarifier Shanks | 4 |
| Cutting Edges | Two 1/2 in. x 6 in. bolt-on, replaceable and reversible heat-treated blades |
