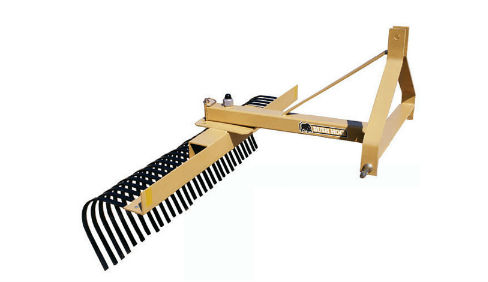

Bush Hog LLR Series

Double tap to zoom



Features

Performance Features
  • Tubular construction
  • Twin Bolt Tine Attachment
  • Heat Treated Tines
  • Powder Coated Paint

Specifications

Model LLR Series
Working Widths 60, 72 and 84 inches
Type Hitch Category I & Quick Hitch
Maximum Tractor HP 35 PTO
Approximate Weight 205, 225, 245 (lbs)
Rake Pivot 5 Forward Positions, Up To 30°; 3 Reverse Positions, Up to 15°
Pivot King Pin 11/4 inches
Tine Spacings 1 inch
Tine Size 5/16 x 1 inches
Rake Height 15 inches
FEATURES: 72 inch wide LLR comes in choice of major tractor colors, 60 and 84 inch come in Caterpillar Yellow only
AVAILABLE OPTION: Gauge Wheel Kit for both models Gauge Wheel Kit
