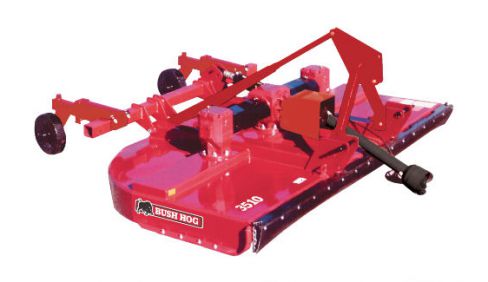

Bush Hog 3510 Offset
3510 Multi-Spindle Rotary Cutter 3510 Offset
Overview:
Bush Hog®’s entire line of multi-spindle rotary cutters is designed for heavy crop clearing, pasture maintenance, and other big jobs that require a durable, reliable machine. With cutting widths from 7 to 14-feet, and a range of hitch types and mounting options, these heavy, rigid deck cutters are built to withstand ex... + Read More
Features
Performance Features
- 10-feet, 6-inch cutting width
- Deflector options
- Folding shields over all cross shafts
- Wide-angle constant velocity drive-shaft on pull models
Construction Features
- Structural steel bracing and reinforced welding at all high stress points
- Shields over all cross shafts fold away for quick access to clutch or universal joints
- Special rubber-cushioned axle arms reduce shock during operation & transport
- Wide-angle, constant velocity drive-shaft on pull models relieves the PTO working angle to reduce vibration
Product Features
- Special rubber-cushioned axle arms reduce shock loads during operation and transport.
- A wide angle, constant velocity driveshaft on pull models relieves the PTO working angle. This reduces vibration and allows smoother cutting in sharp turns.
- All Bush Hog® Multi-Spindle rotary cutters feature structural steel bracing and reinforced welding at all high stress points. Streamlined deck design inhibits trash and water buildup problems.
- Shields over all cross shafts fold conveniently out of the way to allow quick access to clutch or universal joints.
Specifications
| Model | 3510 Offset |
| Cutting Width | 10-feet, 6-inches |
| Cutting Capacity | Up to 3-inches |
| Cutting Height | 2 to 13-inches |
| Dimensions (WxL) | 11-feet, 1-inch x 13-feet, 5-inches (Pull) |
| Type Hitch | Pull Type (Self-Leveling); (7-feet, 10-inches Offset Beyond Tractor Center Line) |
| Deck Thickness | 10-gauge |
| Side Bands | 1/4-inch x 10-inches |
| Minimum Tractor HP | 50 PTO |
| Driveline | ASAE Category 5 |
| Cross Shaft | ASAE Cat. 5 Rubber Element |
| Gearbox HP | (3) 210 Center and 210 Outboard |
| Tractor PTO Speed | 540 RPM |
| Driveline Protection | 4 Plate PTO Slip Clutch |
| Height Adjustment for Heavy Duty Axle only | Manual or Hydraulic |
| Blade Holder(s) | Round |
| Blades | 1/2-inch x 4-inches - Uplift |
| Blade Tip Speed | 16,881 FPM/540 RPM; 17,400/1,000 RPM |
| Blade Overlap | 3-inches |
| Tires | Laminated, Airplane |
| Axles | Rubber Cushioned; Choice of Single or Dual Axle |
| Deflectors | Selection: Front chains and read bands or chains |
| Safety Tow Chain | (Pull with Single Axle) 2,624-lbs |
| Warranty | 1-year limited warranty with a 5-year gearbox limited warranty |
| Features | High Blade Tip Speeds, Deep Sidebands |
