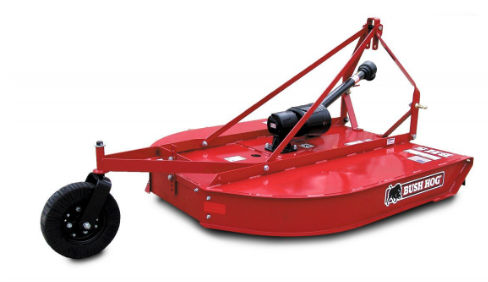

Bush Hog BH5
Razorback Series Cutters BH5
Overview:
Cutting Widths: 4-feet to 6-feet
Cutting Capacity: up to one 1-inch dia.
Min. Tractor PTO HP: 15-25HP
Features
Performance Features
- Cutting Widths from 4 to 6-feet and up to 1-inch diameter
- Gearbox Rating PTO of 60 HP
- Blades built to tear through varied vegetation
Construction Features
- Channel Sideband in 10-gauge x 8-inches
- Laminated Tires built to last and durable in the roughest conditions
- Floating Top Hitch Link with a 3-point lift
- AVAILABLE IN RED, ORANGE, BLUE, AND GREEN
Specifications
| Model | BH5 |
| Cutting Width | 5 ft. |
| Cutting Capacity | Up to 1-inch Diameter |
| Cutting Height (Minimum) | 2” |
| Type Hitch | 3-Point Lift, ASAE Cat. 1 Standard |
| Deck Thickness | 12 Gauge |
| Side Bands | C” Channel, 10 gauge x 8 inches |
| Driveline ASAE Cat. 3 | |
| Gearbox Rating (PTO) | 60 HP* |
| Tractor PTO Speed | 540 RPM |
| Driveline Protection | Shearbolt or slipclutch |
| Bladeholder | Oval Pan |
| Blades | X 3” |
| Blade Tip Speed | 15,497 FPM |
| Tires | Laminated |
| Tractor PTO HP (Minimum) | 20HP |
| Front and Rear Deflectors | Rubber front,v Rear metal band |
| Approximate Weight | 491 lbs. |
