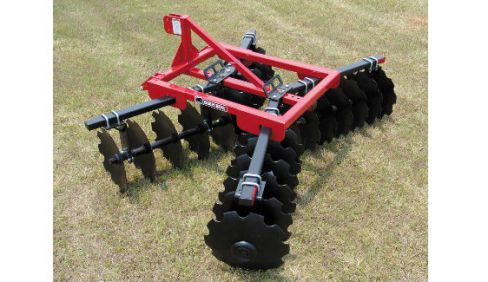

Bush Hog 2D98

Double tap to zoom



Features

Performance Features
  • Adjustable gang angles, front and rear, using an easy-to-grasp handle
  • Cat 1 standard and quick hitch on the 1D and 2D series, along with Cat 1 and 2 standard and quick hitch on the 3D series
  • Variable Blade Spacings Available: 9” front and rear gangs for tough-to-cut “New Ground” • 7 1/2 in. front and rear gangs for finer soil finishing • 9 in. front gangs / 7 1/2 in. rear gangs–the best of both worlds
Construction Features
  • Square and rectangle tube steel frames and gang tubes
  • Self-aligning, sealed ball bearings
  • Notched disc blades for maximum cutting action
  • 1 in. square, high carbon steel gang axle on the 1D and 2D series, with a 1 1/8 in. square, high carbon steel gang axle used on the 3D series
  • Available in tractor colors
  • Optional disc scrapers
Product Features
  • Bearing hangers reinforces with gussets
  • Easy-to-grasp handle for simple gang adjustment
  • Notched discs for maximum cutting action

Specifications

Model 2D98
DRAWBAR HP REQUIREMENT 65 HP
HITCH TYPE Cat. 1 Std and QH
MAX. CULTIVATION WIDTH 96 in.
APPROX. WT. LOAD ON EACH BLADE 39-41 lbs.
DISC BLADE SIZES NOTCHED 18 in. or 20 in.
DISC BLADE SPACING 9 in. Front, 7 1/2 in. Rear or 9 in. Front/Rear or 7 1/2 in. Front/Rear
DISC BEARING TYPE Self-aligning, sealed ball bearings
NO. OF BEARINGS 2 per gang
FORWARD GANG ANGLE ADJUSTMENT Front Gangs – 0°, 7°, 14°, 21°
REAR GANG ANGLE ADJUSTMENT Rear Gangs – 7°, 14°, 21°
MAINFRAME FRONT TUBE CONSTRUCTION 2 in. square tubing
GANG ARM CONSTRUCTION 3 in. x 1 1/2 in. tubing
GANG AXLES 1 in. square, high carbon steel
DISC SCRAPPERS Optional
