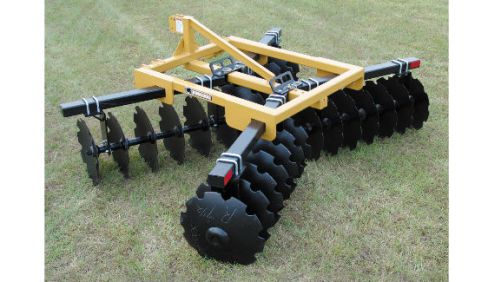

Bush Hog 3D98
3D Series Lift Disc Harrow 3D98
Overview:
Bush Hog’s line of lift disc harrows is designed to expand your tractor’s productivity potential! Whether you are a gardener, small farmer, wildlife manager, landscaper, operate a nursery or simply someone looking to break up the ground, the heavy duty frames and the heat-treated notched disc blades of Bush Hog® lift d... + Read More
Features
Performance Features
- Adjustable gang angles, front and rear, using an easy-tograsp handle
- Cat 1 standard and quick hitch on the 1D and 2D series, along with Cat 1 and 2 standard and quick hitch on the 3D series
- Variable Blade Spacings Available: 9 in. front and rear gangs for tough-to-cut “New Ground” • 7 1/2 in. front and rear gangs for finer soil finishing • 9 in. front gangs/7 1/2 in. rear gangs–the best of both worlds
Construction Features
- Square and rectangle tube steel frames and gang tubes
- Self-aligning, sealed ball bearings
- Notched disc blades for maximum cutting action
- 1 in. square, high carbon steel gang axle on the 1D and 2D series, with a 1 1/8 in. square, high carbon steel gang axle used on the 3D series
- Available in tractor colors
- Optional disc scrapers
Product Features
- Notched discs for maximum cutting action
Specifications
| DESCRIPTION | 3D98 |
| DRAWBAR HP REQUIREMENT | 95 HP |
| HITCH TYPE | Cat. 1 Std and QH |
| MAX. CULTIVATION WIDTH | 96 in. |
| APPROX. WT. LOAD ON EACH BLADE | 53-59 lbs. |
| DISC BLADE SIZES NOTCHED | 20 in. or 22 in. |
| DISC BLADE SPACING | 9 in. Front, 7 1/2 in. Rear or 9 in. Front/Rear or 7 1/2 in. Front/Rear |
| DISC BEARING TYPE | Self-aligning, sealed ball bearings |
| NO. OF BEARINGS | 2 per gang |
| FORWARD GANG ANGLE ADJUSTMENT | Front Gangs – 0°, 7°, 14°, 21° |
| REAR GANG ANGLE ADJUSTMENT | Rear Gangs – 7°, 14°, 21° |
| MAINFRAME FRONT TUBE CONSTRUCTION | 2 in. square tubing |
| GANG ARM CONSTRUCTION | 3 in. x 1 1/2 in. tubing |
| GANG AXLES | 1 1/8 in. square, high carbon steel |
| DISC SCRAPPERS | Optional |
