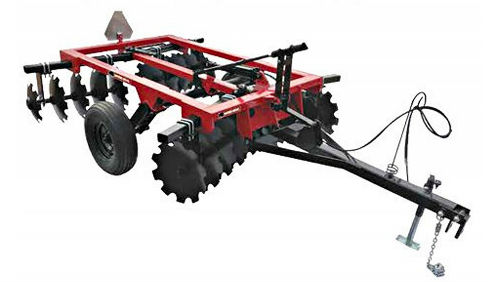

Bush Hog DHP12
DHP Series Pull Disc Harrows DHP12
Overview:
Bush Hog’s new Pull Disc Harrows, the DHP Series, are designed for pulverizing soil, seed bed preparation and general tillage. Solid built units available in widths of 8’, 10’ and 12’, the DHP line of disc harrows are ideally suited for use by small farmers, food plot managers, ranchers, construction crews and nursery ... + Read More
Features
Performance Features
- Square and rectangle tube steel frames and gang tubes
- Adjustable gang angles, front and rear
- Variable Blade Spacings Available: 9” front and rear gangs for tough-to-cut “New Ground” • 7 1/2” front and rear gangs for finer soil finishing • 9” front gangs/7 1/2” rear gangs–the best of both worlds
- Notched disc blades for maximum cutting action
- 1 1/8” square, high carbon steel gang axles
- Available in tractor colors
- Optional disc scrapers, Center Sweep Kit, Dual Wheel Transport Kit
Product Features
- Bearing hangers reinforces with gussets
- Notched discs for maximum cutting action
Specifications
| Model Number | DHP8 |
| Drawbar horsepower requirement | 55-100 hp |
| Hitch type | Pull-type w/clevis & hole for 1 1/4” pin |
| Approximate transport width | 12’-4” |
| Max. cultivation width | 12’ |
| Mainframe width | 93 1/2” |
| Approx weight load on each blade (lbs.) | 82-92 |
| Disc blade sizes and types | 20” or 22” Notched |
| Disc blade spacing | 7.5” or 9” or a combination of both |
| Disc bearing type | Triple lip sealed ball bearings |
| Number of bearings | 12 |
| Forward gang angle adjustment | 15, 16.5, 18, 19.5, 21 Degrees |
| Rear gang angle adjustment | 12, 13.5, 15, 16.5, 18 Degrees |
| Hitch frame construction | 4” x 4” x 1/4” tubing |
| Slide mainframe construction | 4” x 3” x 1/4” tubing |
| Mainframe front & rear tube construction | 5” x 3” x 1/4” tubing |
| Mainframe middle tube construction | 4” x 3” x 1/4” tubing |
| Gang arm construction | 4” x 3” x 1/4” tubing |
| Gang axles | 1 1/8” Square, High Carbon Steel |
| Front to rear leveling system | Manual crank adjustment |
| Depth control | Cylinder stroke control spacers |
| Hydraulic cylinder | 3- 1/2” x 8” ASAE hydraulic cylinder |
| Transport tires and wheels | Two 9.5L x 15 tires on 15” x 6” - 5 bolt wheels |
| Parking jack | Standard |
| AVAILBLE OPTIONS | |
| Disc Scrapers, Center Sweep Kit, Dual Wheel Transport Kit |
