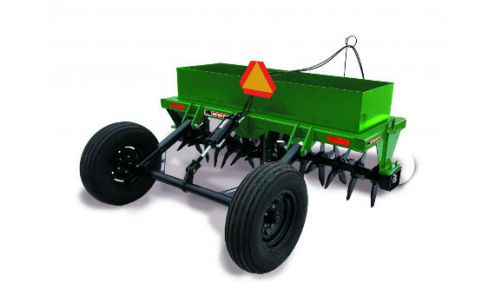

Bush Hog PA10
PA Series Pasture Aerators PA10
Overview:
The PA series pasture aerators from Bush Hog are designed for use anywhere soil compaction exists. Available in eight foot or ten foot models, the PA series units are equipped with twisted shanks that serve both to lift and fracture compacted soil. This dual action design improves the intake of water and nutrients and ... + Read More
Features
Performance Features
- Heavy duty bearing hangers
- Built-in weight box
- Angled rotor adjustment from 2.5° to 7.5°
- Powder Coat Paint
Product Features
- Angled rotor adjustment from 2.5° to 7.5° allows the user to achieve even more soil fracturing as the gangs are offset
- Heavy duty bearing hangers support the twisted shank rotors
- Built-in weight box to ensure maximum soil penetration (weights not included)
Specifications
| Model | PA10 |
| TRACTOR HORSEPOWER REQUIREMENTS | 40 to 90 HP |
| WORKING WIDTH | 116 in. |
| OVERALL WIDTH | 127-5/8 in. |
| OVERALL LENGTH | 136 in. in transportation position |
| OVERALL HEIGHT (with tines on the ground) | 44-1/4 in. |
| WEIGHT (LBS) [approximate] | 2500 |
| MAX. BALLAST IN WEIGHT BOX | 2900 lbs. (PA10) |
| [weight box comes standard with the unit] | (weight not included)-lbs. |
| NUMBER OF TINES | 32 LH & 32 RH |
| TINE MATERIAL | Forged & heat treated through steel |
| TINE HUB SPACING | 7-1/2 in. |
| TINE PENETRATION | Up to 8-1/8 in. depending on ground condition |
| FRAME CONSTRUCTION | 4 in. square tubing; all welded construction |
| MAIN TONGUE BEAM | 4 in. square |
| ROTOR/TINE SUPPORT HANGERS | 1 in. x 7 in. heavy duty hangers |
| ROTOR BEARINGS | Heavy duty greaseable bearings |
| ROTOR BEARING PROTECTION | 3/8 in. x 3-1/2 in. metal housing |
| ROTOR ANGLE ADJUSTMENT | 2.5°, 5°, 7.5° |
| TIRES & WHEELS | 9-1/2L x 15 tires on 15 in. - 5 bolt wheels |
| TINE DEPTH CONTROL | Add cylinder donuts to cylinder rod (included) |
| HYDRAULIC CYLINDER | 3-1/2 in. x 8 in. |
| TRANSPORTATION LOCK | Manual cylinder lock |
| REAR AXLE PIVOT | greaseable |
