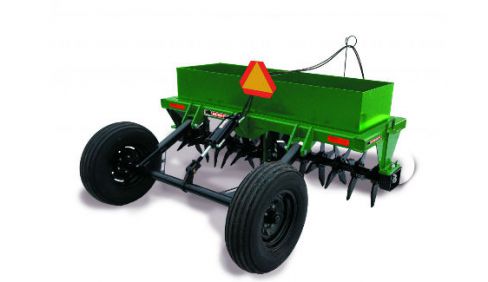

Bush Hog PA8
Features
Performance Features
- Heavy duty bearing hangers
- Built-in weight box
- Angled rotor adjustment from 2.5° to 7.5°
- Powder Coat Paint
Product Features
- Angled rotor adjustment from 2.5° to 7.5° allows the user to achieve even more soil fracturing as the gangs are offset
- Heavy duty bearing hangers support the twisted shank rotors
- Built-in weight box to ensure maximum soil penetration (weights not included)
Specifications
Model | PA8 |
TRACTOR HORSEPOWER REQUIREMENTS | 40 to 90 HP |
WORKING WIDTH | 86 in. |
OVERALL WIDTH | 97-3/8 in. |
OVERALL LENGTH | 136 in. in transportation position |
OVERALL HEIGHT (with tines on the ground) | 44-1/4 in. |
WEIGHT (LBS) [approximate] | 1950 |
MAX. BALLAST IN WEIGHT BOX | 2200 lbs. (PA8) |
[weight box comes standard with the unit] | (weight not included)-lbs. |
NUMBER OF TINES | 24 LH & 24 RH |
TINE MATERIAL | Forged & heat treated through steel |
TINE HUB SPACING | 7-1/2 in. |
TINE PENETRATION | Up to 8-1/8 in. depending on ground condition |
FRAME CONSTRUCTION | 4 in. square tubing; all welded construction |
MAIN TONGUE BEAM | 4 in. square |
ROTOR/TINE SUPPORT HANGERS | 1 in. x 7 in. heavy duty hangers |
ROTOR BEARINGS | Heavy duty greaseable bearings |
ROTOR BEARING PROTECTION | 3/8 in. x 3-1/2 in. metal housing |
ROTOR ANGLE ADJUSTMENT | 2.5°, 5°, 7.5° |
TIRES & WHEELS | 9-1/2L x 15 tires on 15 in. - 5 bolt wheels |
TINE DEPTH CONTROL | Add cylinder donuts to cylinder rod (included) |
HYDRAULIC CYLINDER | 3-1/2 in. x 8 in. |
TRANSPORTATION LOCK | Manual cylinder lock |
REAR AXLE PIVOT | greaseable |
