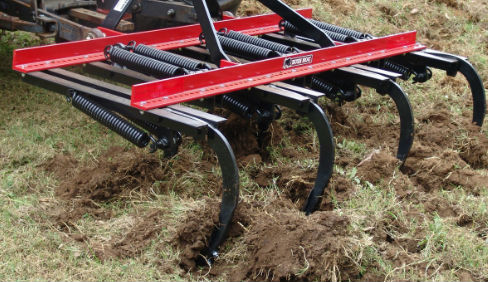

Bush Hog APP85-9

Double tap to zoom



Features

Performance Features
  • All Purpose Plows range in working widths from 44” to 80”.
  • Three point lift Cat. 1 Standard or Quick Hitch.
  • Frame construction is 2-1/2” x 2-1/2” x 3/8” angle iron.
  • Reversible Plow Points and are made of High Carbon steel
Product Features
  • Heat treated shanks with replaceable points; points are 1080 high carbon steel hardened to 38-44 Rockwell C.
  • Easily adjustable shank spacing in 1-inch increments; heavy gauge 2-1/2-inch x 2-1/2-inch x 3/8-inch angle iron frame.
  • Spring loaded, auto-reset shanks protect the implement when obstacles such as rocks, stumps or roots are encountered in rough ground.

Specifications

MODEL APP85-9
Over All Width 85 5/8”
Maximum Working Width 80”
Overall Depth 39 3/4”
Overall Height 40 3/8”
Weight 455-lb
# of Shanks 9
Angle Iron Size (width x height x thickness) 2 1/2” x 2 1/2” x 3/8”
Hole Spacing 1”
Hitch Cat. 1 Std and QH
Teeth 5/16” x 2” x 10 1/8” 1080 HIGH CARBON 38-44 ROCKWELL C REVERSIBLE
Suggested Min. PTO 63 HP
