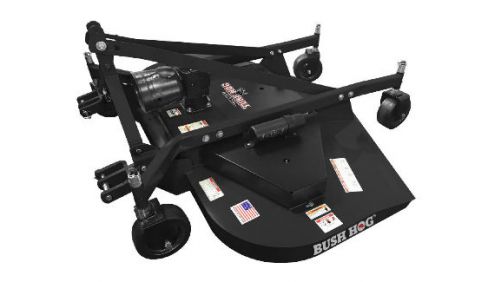

Bush Hog HDTH 5
HDTH Finishing Mowers HDTH 5
Overview:
Turn your tractor into a lawn mowing machine with the new HDTH “Turf Hog” Finish Mowers from Bush Hog. These new Finish Mowers deliver superior grass cutting performance for your well-kept lawn. With models ranging from 5’-8’, our HDTH Finish Mowers help you save time spent cutting your lawn, and more time enjoying it.... + Read More
Features
Performance Features
- 60-99 inch Cutting Widths
- Minimum Required HP of 15-35 to meet the needs of today’s smaller, compact tractors
- Dual floating hitch points allow the mower to rise and fall with the contour of terrain
- Blade Tip Speeds over 18,200 feet per minute
- 1½ inch blade overlap eliminates streaking
- Cutting height adjustment is made with the pull of a pin, and ranges from 1½ to 6½ inches
Construction Features
- Quick Hitch compatibility on all models
- New dove-tail rear discharge design
- Sideband depth increased to 5-inches to allow additional flow of cut material under deck reducing clipping size
- 1 Year Limited Warranty with a 5 Year Gearbox Warranty
Safety Features
- Durable 7 gauge steel decks
- Adjustable Spring-Loaded Idlers
- Strong Aramid fiber belts
Specifications
| Models | HDTH5 | |
| Cutting Width | 60-inches | |
| Cutting Height | 1½ - 6½" | |
| Tractor HP Range | 15-35 PTO | |
| Hitch Type | Cat 1 Std & QH | |
| Blade Size | ¼ x 2½ x 21" | |
| Number of Blades | 3 | |
| Blade Tip Speed | 18,231 FPM | |
| Blade Overlap | 1½" | |
| Blade Uplift | Parallel | |
| Driveline Size | ASAE Cat 3 | |
| Front Roller (optional) | 3x5" | |
| Discharge | Rear | |
| Deck Thickness | 7ga | |
| Tires | 3¼ x 10 Solid | |
| Belts | (1) "B" Size Aramid Cord | |
| Belt Adjustment | Spring-Loaded Idler | |
| Gearbox | 45 HP | |
| Approx. Weight | 672 lbs | |
| Warranty | 1-Year Limited Warranty with a 5-Year Limited Gearbox Warranty |
