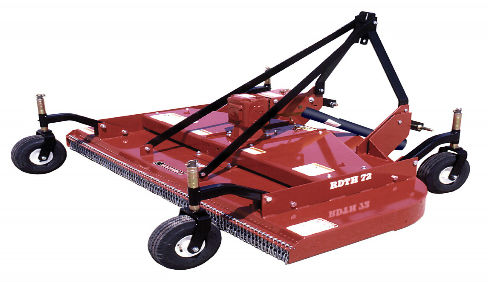

Bush Hog RDTH60
RDTH Finishing Mowers RDTH60
Overview:
Bush Hog® RDTH Rear Discharge Finishing Mowers
Available in 60 and 84-inches Models
Available in cutting widths of 60, 72, and 84-inches, the RDTH Series is designed to deliver a smooth, even cut with the superior distribution of rear discharge. Floating top and lower links allow for a uniform cut on uneven terrain... + Read More
Features
Performance Features
- Superior Distribution Of Rear Discharge
- Over 18,000 FPM Blade Tip Speed
- 5 Year Gearbox Limited Warranty
- Floating Top And Lower Links For Uniform Cut On Uneven Terrain
- Clean, Close Cut
Construction Features
- Fabricated 7 Gauge Decks
- Cat 3 Drivelines
- Commercial Grade
- Greaseable Spindles
- 5 Year Gearbox Limited
- Warranty
- Powder Coat Paint
- Kevlar Reinforced Belt
- Bush Hog Gearbox
- Bush Hog Testing
- A Frames
- Axle Arms
- Genuine Bush Hog Blades
Specifications
| MODELS | RDTH60 |
| Cutting Width | 60 inches |
| Cutting Height (1/2 inch increments) | 1 1/2 to 6 1/2 inches |
| Tractor HP Range | 15 - 35 PTO |
| Type Hitch | Category I |
| Size Blade | 1/4 x 2.5 x 21 inches |
| Number of Blades | 3 |
| Blade Tip Speed | 18,231 FPM |
| Blade Overlap | 1 1/2 inches |
| Blade Uplift | Parallel |
| Driveline Size | ASAE Category 3 |
| Front Roller Size (optional) | 3 x 5 inches |
| Discharge | Rear |
| Deck Plate | 7 gauge |
| Tire Size (solid tire & pneumatic) | 3 1/4 x 10 1/4 inches |
| Belt | B” size Kevlar |
| Gearbox | 45 HP |
| Tractor PTO Speed | 540 RPM |
| Belt Adjustment | Spring Loaded Idler |
| Approximate Weight | 536 lbs |
| Options | Front Roller Kit |
