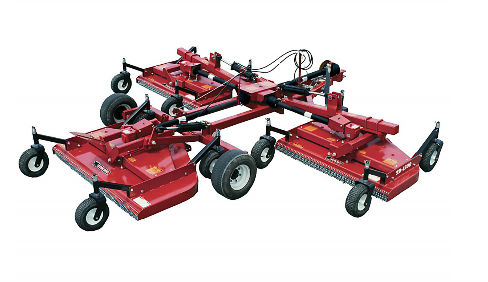

Bush Hog TD-1100 / NOT AVAILABLE

New Products / Bush Hog / Zero-Turn & Finishing Mowers / Tri-Decks / Tri-Deck Finishing Mowers / TD-1100

Double tap to zoom



Features

Performance Features
  • Smooth, Even Cut, Superior Distribution In 11- 17-feet Cutting Widths
  • Blade Tip Speeds Over 18,000 FPM
  • Independent deck flotation
  • Wing Flex 30° Up And 10° Dow
  • Adjustable clevis hitch
  • Standard front anti-scalp rollers
  • Narrow transport width



Construction Features
  • Reinforced mainframe construction
  • Heavy duty Aramid Cord belting
  • Fabricated 7 Gauge Decks
  • Greaseable blade spindles
  • 5 Year Gearbox Limited Warranty
  • Powder Coat Paint
  • Large transport wheels for better flotation and stability
  • Heavy duty divider gearbox


Product Features

Heavy duty divider gearbox

The 3 x 5-inches anti-scalp front roller is standard equipment for all decks.

Adjustable clevis hitch, along with the standard tongue jack, allows one person to attach mower to the tractor. The safety tow chain is standard equipment.

Specifications

MODELS TD-1100
Cutting Width 11 ft
Cutting Height 3/4 to 4 1/4-inches
Deck Widths (3) 48-inches deck
Deck Construction 7 gauge
Deck Overlap 6-inches
Blade Overlap 1 1/2-inches
Material Discharge Rear
Rear Chains Standard equipment
Belt Single Aramid Cord "B" section per deck
Gauge Wheels (12) 11-inches x 4-inches pneumatic w/ roller bearings
Tractor HP Required* 30 HP minimum
Gearbox RPM 540
Spindle RPMs 4150
Transport Dimensions 78-inches wide, 75-inches high,146-inches long
Trans. Tires (w/taper. roll.bearings) (2) 23-inches x 9-1/2-inches x 12-inches
Wing Flex 30° up and 10° down
Hitch Pull type/clevis, 3 position adjustable
Driveline Size Cat IV 80° CV (main), Cat. III wing
Wing Deck Flex (ind. of wing frame) 10° side to side, 10° front to rear
Belt Adjustment Spring loaded idler
Blade Tip Speed 18,468 FPM
Parking Jack Standard
