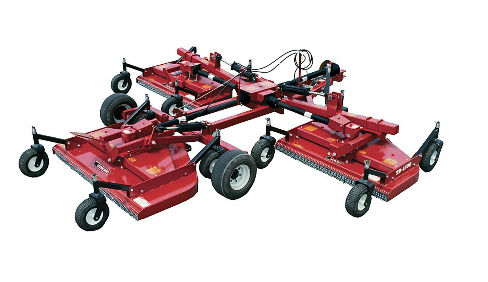

Bush Hog TD-1700
Tri-Deck Finishing Mowers TD-1700
Overview:
TD Tri-Deck Finishing Mowers
Cutting Widths: 11-feet, 15-feet & 17-feet
Cutting Height: 3/4 to 4 1/2-inches
Min. Tractor HP* 30 PTO - 45 PTO
Features
Performance Features
- Smooth, Even Cut, Superior Distribution In 11- 17-feet Cutting Widths
- Blade Tip Speeds Over 18,000 FPM
- Independent deck flotation
- Wing Flex 30° Up And 10° Dow
- Adjustable clevis hitch
- Standard front anti-scalp rollers
- Narrow transport width
Construction Features
- Reinforced mainframe construction
- Heavy duty Aramid Cord belting
- Fabricated 7 Gauge Decks
- Greaseable blade spindles
- 5 Year Gearbox Limited Warranty
- Powder Coat Paint
- Large transport wheels for better flotation and stability
- Heavy duty divider gearbox
Product Features
Heavy duty divider gearbox
The 3 x 5-inches anti-scalp front roller is standard equipment for all decks.
Adjustable clevis hitch, along with the standard tongue jack, allows one person to attach mower to the tractor. The safety tow chain is standard equipment.
Specifications
| MODELS | TD-1700 |
| Cutting Width | 17 ft |
| Cutting Height | 1 1/2 to 4 1/2-inches |
| Deck Widths | (3) 72-inches deck |
| Deck Construction | 7 gauge |
| Deck Overlap | 6-inches |
| Blade Overlap | 1 1/2-inches |
| Material Discharge | Rear |
| Rear Chains | Standard equipment |
| Belt | Single Aramid Cord "B" section per deck |
| Gauge Wheels | (12) 13-inches x 5-inches x 6-inches pneumatic w/ roller bearings |
| Tractor HP Required* | 45 HP minimum |
| Gearbox RPM | 540 |
| Spindle RPMs | 2792 |
| Transport Dimensions | 95-1/2-inches wide, 107-1/2-inches high, 166-inches long |
| Trans. Tires (w/taper. roll.bearings) | (2) 23-inches x 9-1/2-inches x 12-inches |
| Wing Flex | 30° up and 10° down |
| Hitch | Pull type/clevis, 3 position adjustable |
| Driveline Size | Cat IV 80° CV (main), Cat. III wing |
| Wing Deck Flex (ind. of wing frame) | 10° side to side, 10° front to rear |
| Belt Adjustment | Spring loaded idler |
| Blade Tip Speed | 18,272 FPM |
| Parking Jack | Standard |
