Construction Attachments Inc. Xtreme Duty Low Capacity Bucket 4-IN-1 Multi-Purpose Attachment
Multi-Purpose Buckets Xtreme Duty Low Capacity Bucket 4-IN-1 Multi-Purpose Attachment
Overview:
Xtreme Duty Low Capacity Bucket 4-IN-1 Multi-Purpose Attachment is designed for improved material loading and unloading on rubber tire or track host machines up to 100 horsepower. These buckets feature radius moldboard, low profile and attachment options for bolt-on teeth, cutting edge, and tooth bar. This attachment i... + Read More
Features
XTREME DUTY LOW CAPACITY 4-IN-1 MULTI-PURPOSE BUCKET
Product Features:
- For rubber tire host machines up to 100 horsepower, or rubber track host machines up to 80 horsepower
- Radius moldboard for improved material loading and unloading
- Low profile for improved load visibility
- Reversible bolt-on edge standard for dozer section
- Pre-drilled 5/8” x 6” front cutting edge to accommodate reversible cutting edge or bolt-on teeth
- Models include 60”, 67” and 73”

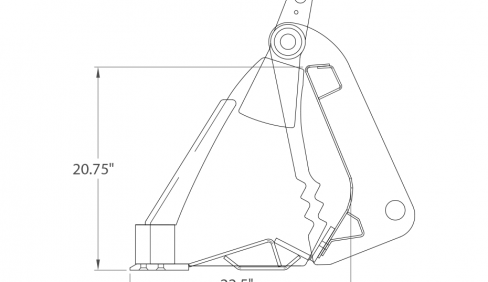

Specifications
| Model | 1MPLC |
|---|---|
| Item | 1MPLC60 1MPLC60T 1MPLC60E 1MPLC60TB 1MPLC67 1MPLC67T 1MPLC67E 1MPLC67TB 1MPLC73 1MPLC73T 1MPLC73E 1MPLC73TB |
| Item Cont. | No |
| Product Category | 4-IN-1 Multi-Purpose Buckets |
| Duty Rating | Xtreme Duty [Standard] |
| Product Type | Low Capacity |
| Width (Inches) | 60, 67, 73 |
| Attachment Options | Bolt-on Edge (E), Bolt-on Teeth (T), Bolt-on Tooth Bar (TB), None |
| # of Teeth | 0-8 |
| Heaped Capacity - Cu Ft | 9.81 (60"), 11.05 (67"), 12.1 (73") |
| Max Clam Opening (IN) | 36.25 |
| Weight (LBS) | 694-892 |
| OEM Colors Available | Yes |
| Designed For Use | loading, digging, back filling, clam loading, bull dozing, clamping, bottom dumping, scraping |
| Suitable For | Rubber Track Host Machine, Rubber Tire Host Machine, Tractor Loaders |
