Construction Attachments Inc. Xtreme Duty Low Profile Bucket 4-IN-1 Multi-Purpose Attachment
Multi-Purpose Buckets Xtreme Duty Low Profile Bucket 4-IN-1 Multi-Purpose Attachment
Overview:
Xtreme Duty Low Profile Bucket 4-IN-1 Multi-Purpose Attachment is designed for rubber tire host machines up to 100 and rubber track host machines up to 80 horsepower. This bucket is available in 67", 73" and 76" with the following options: bolt-on teeth, weld-on teeth, bolt-on cutting edge, bolt-on tooth bar and extended tooth bar.
Features
XTREME DUTY LOW PROFILE 4-IN-1 MULTI-PURPOSE BUCKET
Product Features:
- For rubber tire host machines up to 100 horsepower or rubber track host machines up to 80 horsepower
- Low profile for improved load visibility
- Radius moldboard for improved material loading and unloading
- Pre-drilled 6” x 5/8” front cutting edge to accommodate all bolt-on options
- Solid 6” x ¾” edge is attached to buckets with weld-on teeth
- Reversible bolt-on edge standard for dozer section
- Models include 67”, 73” and 76”
Front edge options:
- Bolt-on Teeth
- Weld-on Teeth
- Reversible Bolt-on Cutting Edge
- Bolt-on Tooth Bar
- Bolt-on Extended Tooth Bar

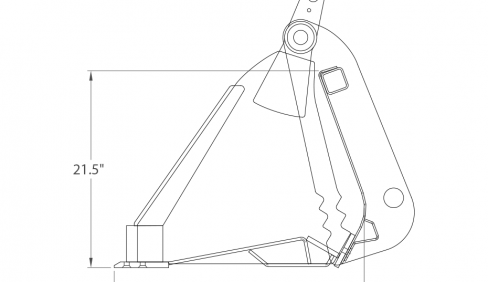

Specifications
| Model | 1MP |
|---|---|
| Item | 1MP67 1MP67T 1MP67WT 1MP67E 1MP67TB 1MP67ETB 1MP73 1MP73T 1MP73WT 1MP73E 1MP73TB 1MP73ETB 1MP76 1MP76T 1MP76WT 1MP76E 1MP76TB 1MP76ETB |
| Item Cont. | No |
| Product Category | 4-IN-1 Multi-Purpose Buckets |
| Duty Rating | Xtreme Duty [Standard] |
| Product Type | Low Profile |
| Width (Inches) | 67, 73, 76 |
| Attachment Options | Bolt-on Edge (E), Bolt-on Extended Tooth Bar (ETB), Bolt-on Teeth (T), Bolt-on Tooth Bar (TB), Weld-on Teeth (WT), None |
| # of Teeth | 0-9 |
| Heaped Capacity - Cu Ft | 13.86 (67"), 15.22 (73"), 15.88 (76") |
| Max Clam Opening (IN) | 40.25 |
| Weight (LBS) | 866-1065 |
| OEM Colors Available | Yes |
| Designed For Use | loading, digging, back filling, clam loading, bull dozing, clamping, bottom dumping, scraping |
| Suitable For | Rubber Track Host Machine, Rubber Tire Host Machine, Tractor Loaders |
