Construction Attachments Inc. Xtreme Duty High Capacity Light Material General Purpose Bucket
Buckets Xtreme Duty High Capacity Light Material General Purpose Bucket
Overview:
The XTREME Duty™ Xtreme Duty High Capacity Light Material General Purpose Bucket Attachment is designed with a radius moldboard for improved material loading and unloading. Designed for compatibility with rubber tire and rubber track host machines. This bucket is available in 66", 72", 78" and 84" models with a Reversi... + Read More
Features
XTREME DUTY HIGH CAPACITY LIGHT MATERIAL GENERAL PURPOSE BUCKET
Product Features:
- For rubber tire or rubber track host machines
- Extended bottom design provides front edge visibility for machine operator
- Radius moldboard for improved material loading and unloading
- Pre-drilled high-strength, abrasion-resistant ½” x 6” front cutting edge to accommodate bolt-on reversible cutting edge
- Specifically designed for low density materials such as mulch, grain, snow, etc.
- Not for grading
- Models include 66”, 72”, 78” and 84”

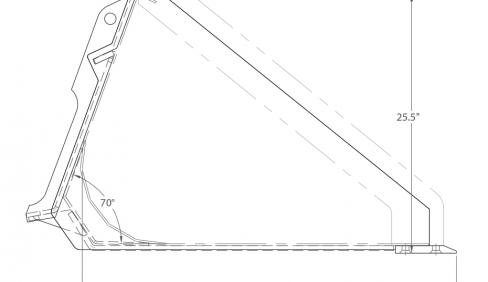

Specifications
| Model | 1GPHCLM |
|---|---|
| Item | 1GPHCLM66 1GPHCLM66E 1GPHCLM72 1GPHCLM72E 1GPHCLM78 1GPHCLM78E 1GPHCLM84 1GPHCLM84E |
| Item Cont. | No |
| Product Category | General Purpose Buckets |
| Duty Rating | Xtreme Duty [Standard] |
| Product Type | High Capacity Light Material |
| Width (Inches) | 66, 72, 78, 84 |
| Attachment Options | Bolt-on Edge (E) |
| # of Teeth | No |
| Heaped Capacity - Cu Ft | 22 (66"), 24 (72"), 27 (78"), 29 (84") |
| Weight (LBS) | 565-882 |
| OEM Colors Available | Yes |
| Designed For Use | carrying, loading, digging, dumping, leveling |
| Suitable For | Rubber Track Host Machine, Rubber Tire Host Machine |
