Construction Attachments Inc. Xtreme Duty Grapple Bucket - Skid Steer And Tractor Loader Attachment
Grapple Attachments Xtreme Duty Grapple Bucket - Skid Steer And Tractor Loader Attachment
Overview:
Xtreme Duty Grapple Bucket Attachment designed for skid steer and tractor loaders 51-150 horsepower. Grapple bucket designed for harsh environments to be used to remove building, forestry and scrap yard debris. Large opening of over 44" to clamp large loads evenly. This grapple bucket is available in 60", 67", 73" and 82" models.
Features
XTREME DUTY GRAPPLE BUCKET FOR SKID STEER AND TRACTOR LOADERS
Product Features:
- Low profile for improved load visibility
- 19” wide lids are uniform between our Root Grapple and Grapple Bucket line
- Large grapple opening of over 44” designed to clamp evenly around load
- Maximum grapple clamping force: 6,000 lbs @ 3,000 psi
- 5/8” x 6” bolt-on reversible cutting edge for all models
- Radius mold board for improved unloading and added strength
- ¾” lid tines and heavily-gusseted lids
- 1 ½” pivot pins and 2 ¾” bore cylinders
- Covered hoses for full protection in harsh environments
- Rear hitch designed to match host machine
- Models include 60”, 67”, 73” and 82”
Designed for:
- For skid steer loaders and tractor loaders with 51 - 150 horsepower
- Ideal attachment for harsh environments
- Used for the removal of building, forestry and scrap yard debris

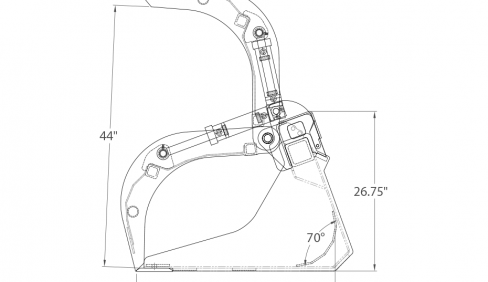

Specifications
| Model | 1GB |
|---|---|
| Item | 1GB60E , 1GB67E , 1GB73E , 1GB82E |
| Product Category | Grapple Bucket |
| Duty Rating | Xtreme Duty [Standard] |
| Width (Inches) | 60, 67, 73, 82 |
| # of Tines | No |
| Max Grapple Opening (IN) | 44 |
| Weight (LBS) | 1116-1372 |
| Attachment Options | Bolt-on Edge (E) |
| OEM Colors Available | Yes |
| Designed For Use | aggressive applications, industrial, landscaping, agriculture, carrying, demolition |
| Suitable For | Skid Steers, Tractor Loaders |
