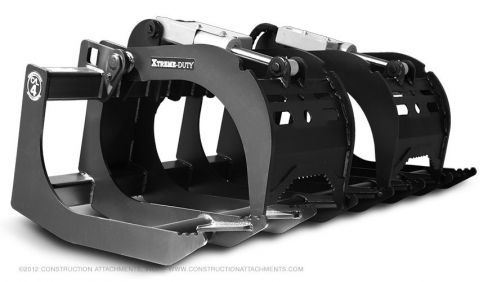

Construction Attachments Inc. Xtreme Duty Root Grapple - Skid Steer And Tractor Loader Attachment
Grapple Attachments Xtreme Duty Root Grapple - Skid Steer And Tractor Loader Attachment
Overview:
Xtreme Duty Root Grapples designed for skid steers and tractor loaders with 51-150 horsepower. These attachments are ideal for removal of debris such as rocks, roots, as well as general site clean-up. Rear hitch is designed to match host machines. This grapple is available in 66", 73", 78" and 84" models.
Features
XTREME DUTY ROOT GRAPPLE SKID STEER AND TRACTOR LOADER ATTACHMENT
Product Features:
- Front gussets to act as stops for closing lids
- Self-contained hydraulic system to minimize hose damage
- Covered hoses for full protection in harsh environments
- Designed to clamp evenly around load
- Maximum grapple clamping force: 6,000 lbs @ 3,000 psi
- ¾” lid tines and heavily-gusseted lids
- 1 ½” pivot pins and 2 ¾” bore cylinders
- Rear hitch designed to match host machine
- Models include 66”, 73”, 78” and 84”
Designed for:
- For skid steer loaders and tractor loaders with 51 – 150 horsepower
- Ideal attachment for harsh environments, clearing brush, the removal of debris such as rocks, roots, as well as general site clean-up
Specifications
| Model | 1RG |
|---|---|
| Item | 1RG66 , 1RG73 , 1RG78 , 1RG84 |
| Product Category | Root Grapple |
| Duty Rating | Xtreme Duty [Standard] |
| Width (Inches) | 66, 73, 78, 84 |
| # of Tines | 8-10 |
| Max Grapple Opening (IN) | 43 |
| Weight (LBS) | 924-1050 |
| Attachment Options | None |
| OEM Colors Available | Yes |
| Designed For Use | aggressive applications, industrial, landscaping, agriculture, construction, carrying, demolition |
| Suitable For | Skid Steers, Tractor Loaders |
