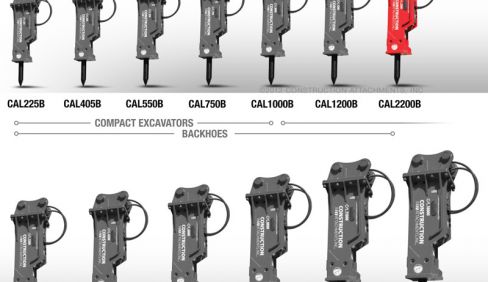

Construction Attachments Inc. Hydraulic Breaker for 20,000-32,000 LBS Tractor Loader Backhoes

Double tap to zoom



Features

Designed for aiding in construction and demolition of concrete structures, rocks, asphalt, etc.

  • Constructed of high strength steel to provide structural durability
  • Silence kit ensures noise protection, prevents dust and debris from entering breaker housing
  • Cushion Damper provides protection to the host machine
  • Auto Stop (Anti Blank Fire) System ensures less problem of the components and longer life of the breaker



Standard equipment includes:

(1) base breaker unit
(1) mounting bracket
(1) chisel point
(1) tool kit
(1) nitrogen gauge for checking pressure
(1) operators manual

  • Specify make and model of host machine when placing order
  • Weights may vary based on selected hitch styles

Underwater Kits for Hydraulic Breakers Are Available

Warning Read All Details

  • Use of unsuitable hydraulic couplers or hoses can cause damage to internal components of breaker.
  • Hydraulic lines < 60 gpm – use 1.0 inch lines AND > 60 gpm – use 1.25 inch lines.
  • Dry firing hydraulic breaker can result in damage to internal components of breaker and host machine.
  • Chisel paste must be used with hydraulic breakers, using high temperature grease as a substitution for chisel paste will cause damage to components of breaker.
  • Consult with appropriately trained hydraulic specialists prior to placing breaker into service.
  • Read operators manual before use.
  • Check hydraulic flow and pressure before use.
  • Instruct owner/operator on proper use of hydraulic breaker before delivery of machine or product.

Specifications

Model 1BR2200B-EX (TLB)
Item No. CAL2200B
Energy Class (FT-LBS) 2,200
Blows Per Minute 350-900
Weight (LBS) 2,240
Machine Weight Class (LBS) 20,000-32,000 LBS
System Hydraulic Pressure Requirement (PSI) 2,030-2,610
Oil Flow Requirement (GPM) 23.8-37.1
Tool Diameter (IN) 4.14
Host Machine

Tractor Loader Backhoes

Case 580 Super M Series 2, 580 Super M+ Series 2, 590 Super M Series 2
Caterpillar 430E, 446D, 430F, 450F
John Deere 410G, 710G, 410K, 710K
Komatsu WB1 56-5, WB156PS-5

Contact us if your host machine is not listed.

OEM Colors Available Yes
Designed For Use aggressive applications, construction, road construction, quarries, demolition, underwater use, compacting, tunneling, sloping, trenching
Suitable For Tractor Loader Backhoes
