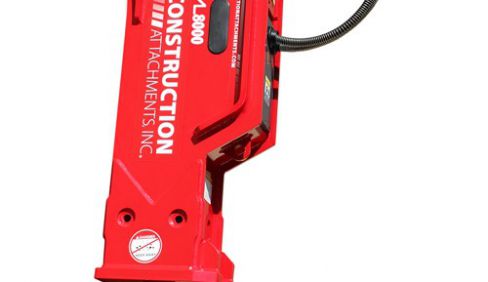

Construction Attachments Inc. Hydraulic Breaker for 70,000-220,000 LBS Mid-Large Excavators
Mid & Large Excavators Hydraulic Breaker for 70,000-220,000 LBS Mid-Large Excavators
Overview:
Construction Attachments Hydraulic Breaker for Mid-Large Excavators are designed for construction and demolition of concrete structures, rocks, asphalt, and more. These speciality attachments are for use on Large Excavators.
Features
Designed for aiding in construction and demolition of concrete structures, rocks, asphalt, etc.
- Constructed of high strength steel to provide structural durability
- Silence kit ensures noise protection, prevents dust and debris from entering breaker housing
- Cushion Damper provides protection to the host machine
- Auto Stop (Anti Blank Fire) System ensures less problem of the components and longer life of the breaker
Standard equipment includes:
(1) base breaker unit
(1) mounting bracket
(1) chisel point
(1) tool kit
(1) nitrogen gauge for checking pressure
(1) operators manual
- Specify make and model of host machine when placing order
- Weights may vary based on selected hitch styles
- Use of unsuitable hydraulic couplers or hoses can cause damage to internal components of breaker.
- Hydraulic lines < 60 gpm – use 1.0 inch lines AND > 60 gpm – use 1.25 inch lines.
- Dry firing hydraulic breaker can result in damage to internal components of breaker and host machine.
- Chisel paste must be used with hydraulic breakers, using high temperature grease as a substitution for chisel paste will cause damage to components of breaker.
- Consult with appropriately trained hydraulic specialists prior to placing breaker into service.
- Read operators manual before use.
- Check hydraulic flow and pressure before use.
- Instruct owner/operator on proper use of hydraulic breaker before delivery of machine or product.
Specifications
| Model | 1BR8000B-EX , 1BR11000B-EX , 1BR18000B-EX |
|---|---|
| Item No. | CAL8000B , CAL11000B , CAL18000B |
| Energy Class (FT-LBS) | 8,000-18,000 |
| Blows Per Minute | 200-600 |
| Weight (LBS) | 5,610-15,432 |
| Machine Weight Class (LBS) | 70,000-220,000 LBS |
| System Hydraulic Pressure Requirement (PSI) | 2,320-2,755 |
| Oil Flow Requirement (GPM) | 47.6-119 |
| Tool Diameter (IN) | 6.1-8.26 |
| Host Machine |
CAL8000BLarge ExcavatorsCase 9050B, CX330, CX470, CX350 CAL11000BLarge ExcavatorsCase 9060B, CX330, CX460 CAL18000BLarge ExcavatorsCase CX700B, CX800B Contact us if your host machine is not listed. |
| OEM Colors Available | Yes |
| Designed For Use | road construction, quarries, demolition, underwater use, compacting, tunneling, sloping, trenching, aggressive applications, construction |
| Suitable For | Excavators |
