Construction Attachments Inc. Hydraulic Breaker for 1,400-7,000 LBS Skid Steers

Double tap to zoom



Features

Designed for aiding in construction and demolition of concrete structures, rocks, asphalt, etc.

  • Constructed of high strength steel to provide structural durability

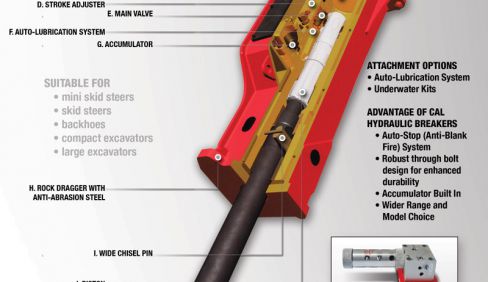

  • Auto Stop (Anti Blank Fire) System ensures less problem of the components and longer life of the breaker



Standard equipment includes:

(1) base breaker unit
(1) mounting bracket
(1) chisel point
(1) tool kit
(1) nitrogen gauge for checking pressure
(1) operators manual

  • Specify make and model of host machine when placing order
  • Weights may vary based on selected hitch styles

Underwater Kits for Hydraulic Breakers Are Available

Warning Read All Details

  • Use of unsuitable hydraulic couplers or hoses can cause damage to internal components of breaker.
  • Dry firing hydraulic breaker can result in damage to internal components of breaker and host machine.
  • Chisel paste must be used with hydraulic breakers, using high temperature grease as a substitution for chisel paste will cause damage to components of breaker.
  • Consult with appropriately trained hydraulic specialists prior to placing breaker into service.
  • Read operators manual before use.
  • Check hydraulic flow and pressure before use.
  • Instruct owner/operator on proper use of hydraulic breaker before delivery of machine or product.

Specifications

Model 1BR225B-SS , 1BR450B-SS
Item No. CAL225B , CAL450B
Energy Class (FT-LBS) 225 - 450
Blows Per Minute 450-1,000
Weight (LBS) 192 - 530
Machine Weight Class (LBS) 1,400-7,000 LBS
System Hydraulic Pressure Requirement (PSI) 1,305-2,500
Oil Flow Requirement (GPM) 3.7-10.6
Tool Diameter (IN) 2-2.25
Host Machine

CAL225B

Bobcat 463
Case 1825B
New Holland L250, L255
Dingo
Thomas 350T

CAL450B

ASV RC-30
Bobcat 463, 553, MT-52, MT-55, S70
Case 1825B, 40XT, 410
Gehl 3725, 3825, 1640E
Mustang 2012, 2026
New Holland LS140

Contact us if your host machine is not listed.

OEM Colors Available Yes
Designed For Use construction, road construction, quarries, demolition, underwater use, compacting, tunneling, sloping, trenching, aggressive applications
Suitable For Skid Steers
