Construction Attachments Inc. Xtreme Duty Walk-Through Regular and Heavy Lift Pallet Forks
Pallet Fork Attachments Xtreme Duty Walk-Through Regular and Heavy Lift Pallet Forks
Overview:

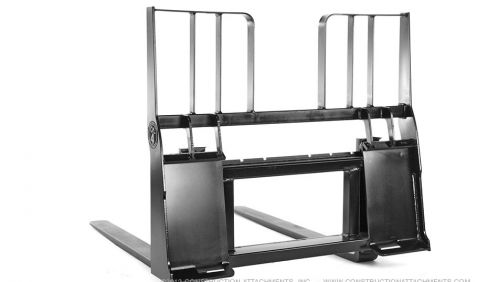

Walk-Through Pallet Forks designed for loading, unloading and transporting bulky, baled or palletized material. 14" opening with radius corners and over 15" of headache rack on each side of the frame for payload support.
Features
XTREME DUTY WALK-THROUGH REGULAR AND HEAVY LIFT PALLET FORKS BY CONSTRUCTION ATTACHMENTS INC.®
Product Features:
- For skid steer loaders
- Essential tool for loading /unloading or transporting bulky, baled or palletized material
- 14” opening with radius corners for easy machine access
- Over 15” of headache rack on each side of the frame remains to support the payload
- Adjustable fork widths from 6 ½” to 44 ¾”
- Standard frame size: 45 ½” W x 38 ½” H
- Frame and fork tines may be purchased separately; call for pricing
- Available in regular and heavy lifts
- Models include 36”, 42”, 48”, 60”, 72” and 96”
- Forged tines that meet ITA standards for strength, durability and longevity
Specifications
| Model | 1PFWT |
|---|---|
| Item | 1PFWT36 , 1PFWT42 , 1PFWT48 , 1PFWT60 , 1PFWT72 , 1PFWTHL42 , 1PFWTHL48 , 1PFWTHL60 , 1PFWTHL72 , 1PFWTHL96 |
| Product Category | Pallet Forks |
| Duty Rating | Xtreme Duty [Standard] |
| Product Type | Walk Through Regular + Heavy Lift |
| Fork Length (In) | 36", 42", 48", 60", 72", 96" |
| Fork Size (In) | 4" x 1.375" (Regular), or 4" x 1.5" for Heavy Lift (4" x 1.75" for H.L. 96" model) |
| Fork Lift Capacity (Lbs) | 4,000 (Regular), 5,500 for Heavy Lift (6,400 for H.L. 96" model) |
| Frame Size (In) | 45.5" W x 38.5" H |
| Weight (LBS) | 329-625 |
| OEM Colors Available | Yes |
| Designed For Use | lifting, carrying |
| Suitable For | Skid Steers |
