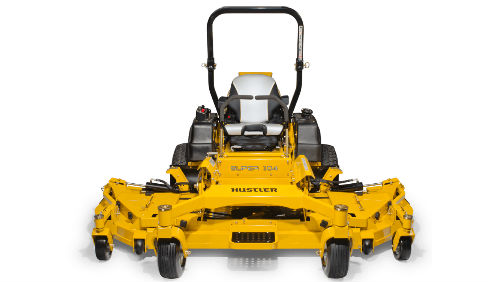

Hustler 104" Rear Discharge Vanguard Big Block
Super 104™ 104" Rear Discharge Vanguard Big Block
Overview:
-104" width of cut – widest and most productive of any commercial zero-turn
-Heavy-duty fabricated frame
-Exclusive SmoothTrak™ steering
-Patented automatic park brake
-Wide area mower with 80" transport width
-11mph speed
-12 gallon fuel capacity
-Hydraulic powered deck height adjustment
-Grammer suspension se... + Read More
Features
104" Width of Cut
The widest and most productive of any commercial zero-turn mower.
HyperDrive Transmission
Features industrial-grade pumps and motors to handle tough jobs and long days in stride.
Wings Fold to 80"
80" transport width fits most trailers for easy travel between jobs.
Automatic Park Brake
Auto engages when steering levers are open.
Unmatched Comfort
Six-way adjustable premium Grammer suspension seat with smooth-ride isolator - all day comfort.
Zero-Turn Maneuverability
A wide-area mower with zero-turn maneuverability gets you in and out of areas other wide area mowers can't.
Specifications
| Engine | |
| Manufacturer | Vanguard |
| HP (Per SAE J 1995.) | 36HP |
| Displacement | 993cc |
| Cooling | Air Cooled |
| Air Cleaner | Heavy-Duty Canister |
| Engine Warranty | 5 Year - Vanguard Only |
| Drive System | |
| Type | Dual Hydrostatic |
| Pumps | Danfoss DDC20 |
| Wheel Motors | Parker TG0360 |
| Hydraulic Lines | Stainless Steel Parker Seal Loc Technology |
| Hydraulic Cooling | Oil Cooler w/ 9" Fan |
| Reservoir Capacity | 3 gal. |
| Transmission | n/a |
| Speed | 11 mph |
| Parking Brakes | Patented Automatic |
| Decks | |
| Cutting Width | 104" |
| Cutting Heights | 1" - 5.5" |
| Deck Lift | Hydraulic Powered |
| Depth | 5.5" |
| Blades | 5 |
| Blade Length | 1 - 23.86"" x 2.50"" x .203"" CW 1 - 23.86"" x 2.50"" x .203"" CCW 1 - 20.50"" x 2.50"" x .203"" CCW 2 - 20.50"" x 2.50"" x .203"" CW |
| Blade Tip Speed | 15,800 fpm |
| Spindles | Ductile Cast Iron w/ Steel Shafts and Sealed Ball Bearings |
| Deck Belts | 1 Per Deck |
| Drive | Electric PTO Clutch |
| Construction | 11ga. Welded Steel |
| Spindle Mounts | Reinforced 7ga. Doubler |
| Impact/Trim Areas | 1.5" x .375" Steel Bar Protector |
| Construction | |
| Frame | 1.5" x 3.0" x .187" Steel |
| Deck Carrier Frame | n/a |
| Engine/Transmission Frame | n/a |
| Engine Plate | n/a |
| Front Axle | n/a |
| Front Caster Wheels | Mounted w/ Sealed Ball Bearings |
| Front Caster Forks | Fabricated 1/2" Steel |
| Operator Platform | n/a |
| General | |
| Seat | Grammer Suspension Seat, Isolator Platform |
| Fuel Capacity | 12 gal. |
| Cup Holder | Yes |
| Front Tire | 15 x 6.0 - 6 |
| Drive Tire | 26 x 12 - 12 |
| Productivity | |
| Acres per Hour | 9.24 |
| Dimensions | |
| Weight | 2312 lbs. |
| Height | n/a |
| Height w/ ROPS Up | 71.5" |
| Height w/ ROPS Folded | 54" |
| Length | 95.5" |
| Width | 106.1"" Wings Down 80.0"" Wings Up at Gauge Wheels 72.5"" Wings Up at Deck Base |
| Width w/ Chute Up | n/a |
| Tire Width | 60.3" |
| Dimensions w/ Catcher | |
| Catcher Type | - |
| Powered/Non-powered | - |
| Catcher Capacity | - |
| Mower Length w/ Catcher | - |
| Mower Width w/ Catcher | - |
