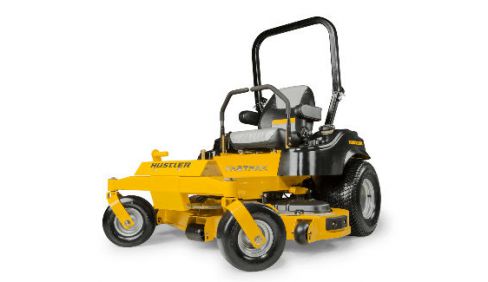

Hustler 48" Kawasaki FR691 Rear Discharge
FasTrak 48" Kawasaki FR691 Rear Discharge
Overview:
-48”, 54” or 60” commercial-style side discharge deck
-48” or 54” rear-discharge deck
-Heavy-duty fabricated frame
-Exclusive SmoothTrak™ steering
-Patented automatic park brake
-Premium bolstered seat with armrests
-13” front and 22” drive tires
-Commercial-grade transmissions
Features
Automatic Park Brake
Auto engages when steering levers are open.
Heavy-Duty Features
Commercial-style decks and commercial-grade frame rails. Up to 60" deck size available.
Powerful Engine Options
Kawasaki or Kohler engine options available.
Large Drive Tires
Large drive tires provide a smoother ride experience. The FasTrak features 22" drive tires.
SmoothTrak™ Steering
Responsive, precise steering control.
Premium Seat
Premium bolstered seat with armrests that provides exceptional comfort.
Specifications
| Engine | |
| Manufacturer | Kawasaki |
| HP (Per SAE J 1995.) | 23HP |
| Displacement | 726cc |
| Cooling | Air Cooled |
| Air Cleaner | Single Stage |
| Engine Warranty | 3 year |
| Drive System | |
| Type | Dual Hydrostatic |
| Pumps | n/a |
| Wheel Motors | n/a |
| Hydraulic Lines | n/a |
| Hydraulic Cooling | n/a |
| Reservoir Capacity | n/a |
| Transmission | HydroGear ZT 3100 |
| Speed | 8 mph |
| Parking Brakes | Patented Automatic |
| Decks | |
| Cutting Width | 48" |
| Cutting Heights | 1.5"-4.5" |
| Deck Lift | Foot Operated |
| Depth | 5" |
| Blades | 3 |
| Blade Length | 3 - 16.50" x 2.50" x .20" |
| Blade Tip Speed | 18,600 fpm |
| Spindles | Aluminum w/ 1.0" Shafts and Sealed Ball Bearings |
| Deck Belts | n/a |
| Drive | Electric PTO Clutch |
| Construction | 10ga. Fabricated |
| Spindle Mounts | Reinforced 11ga. |
| Impact/Trim Areas | 3/8" x 1" Steel Bar |
| Construction | |
| Frame | 1.5" x 3" x .125" Steel |
| Deck Carrier Frame | n/a |
| Engine/Transmission Frame | n/a |
| Engine Plate | n/a |
| Front Axle | Fabricated w/ Sealed Ball Bearings |
| Front Caster Wheels | Heavy-Duty Ball Bearings, Greasable |
| Front Caster Forks | Fabricated 3/8" Steel |
| Operator Platform | n/a |
| General | |
| Seat | Custom Bolstered Vinyl w/ Internal Suspension and Armrests |
| Fuel Capacity | 5 gal. |
| Cup Holder | Yes |
| Front Tire | 13 x 5 - 6 |
| Drive Tire | 22 x 9.5 - 10 |
| Productivity | |
| Acres per Hour | 3.1 |
| Dimensions | |
| Weight | 840 lbs. |
| Height | 44.3" |
| Height w/ ROPS Up | n/a |
| Height w/ ROPS Folded | n/a |
| Length | 73.6 |
| Width | n/a |
| Width w/ Chute Up | 48.85" |
| Tire Width | 47" |
