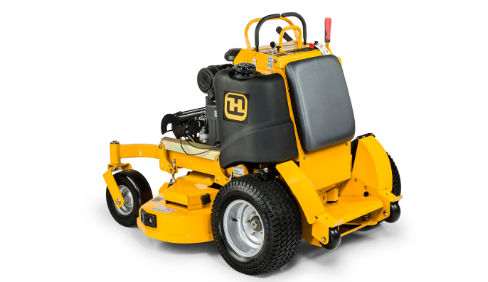

Hustler 36" Kawasaki FS541V
Super S® 36" Kawasaki FS541V
Overview:
-36", 48", 52", or 60" welded-steel side-discharge deck
-Heavy-duty fabricated frame
-Exclusive SmoothTrak™ steering
-Operator-friendly, ergonomic controls
-Compact stance – great for tight spaces
-Superior operator comfort and positioning
-Powerful engine options
-8 or 9 mph speed options (depending on deck siz... + Read More
Features
Operator Comfort
Features exceptional operator positioning for all-day comfort.
Ergonomic Controls
Provides less operator fatigue, easy to handle.
Service-Friendly Design
Designed to make maintenance and service simple and easy.
Compact Stance
Small footprint, can go where other machines can't.
Welded Steel Deck
Heavy-duty design for unmatched durability.
Large Drive Tires
Large drive tires provide a smoother ride experience. The Super S offers up to 20" drive tires.
Specifications
| Engine | |
| Zero-Turn Configuration | 36" Kawasaki FS541V |
| Manufacturer | Kawasaki |
| HP (Per SAE J 1995.) | 15HP |
| Displacement | 603-747cc |
| Cooling | Air Cooled |
| Air Cleaner | Heavy-Duty Canister (not standard on this model) |
| Engine Warranty | 3 Year |
| Drive System | |
| Zero-Turn Configuration | 36" Kawasaki FS541V |
| Type | Dual Hydrostatic |
| Pumps | n/a |
| Wheel Motors | n/a |
| Hydraulic Lines | n/a |
| Hydraulic Cooling | n/a |
| Reservoir Capacity | n/a |
| Transmission | Hydro-Gear 10cc Pump/Parker TL0195 Wheel Motor |
| Speed | 8 mph |
| Parking Brakes | Hand Operated |
| Decks | |
| Zero-Turn Configuration | 36" Kawasaki FS541V |
| Cutting Width | 36" |
| Cutting Heights | 1.5"-5.5" |
| Deck Lift | Hand Operated |
| Depth | 5.5" |
| Blades | 2 |
| Blade Length | 2 - 17.86" x 2.50" .20" |
| Blade Tip Speed | n/a |
| Spindles | Ductile Cast Iron w/ Steel Shafts and Sealed Ball Bearings |
| Deck Belts | n/a |
| Drive | Electric PTO Clutch |
| Construction | 7ga. Fabricated w/ 7ga. Wrappers |
| Spindle Mounts | 7ga. w/ 11ga. Doubler |
| Impact/Trim Areas | 11ga. Formed Channel w/ Rolled Bottom |
| Construction | |
| Zero-Turn Configuration | 36" Kawasaki FS541V |
| Frame | 1.5" x 2" x .179" Steel |
| Deck Carrier Frame | n/a |
| Engine/Transmission Frame | n/a |
| Engine Plate | 7ga. w/ 11 ga. Jackshaft Doubler |
| Front Axle | n/a |
| Front Caster Wheels | Heavy-Duty Ball Bearings, Greasable |
| Front Caster Forks | Fabricated 3/8" Steel |
| Operator Platform | 7ga. w/ Embossed Tread Pattern |
| General | |
| Zero-Turn Configuration | 36" Kawasaki FS541V |
| Seat | n/a |
| Fuel Capacity | 6.5 gal. |
| Cup Holder | n/a |
| Front Tire | 11 x 4 smooth |
| Drive Tire | 18 x 8.5 - 10 |
| Productivity | |
| Zero-Turn Configuration | 36" Kawasaki FS541V |
| Acres per Hour | 2.33 |
| Dimensions | |
| Zero-Turn Configuration | 36" Kawasaki FS541V |
| Weight | 910 lbs. |
| Height | 47.8" |
| Height w/ ROPS Up | n/a |
| Height w/ ROPS Folded | n/a |
| Length | 63.5" |
| Width | 48" |
| Width w/ Chute Up | 39" |
| Tire Width | 36.3" |
| Dimensions w/ Catcher | |
| Zero-Turn Configuration | 36" Kawasaki FS541V |
| Catcher Type | Side Catcher |
| Powered/Non-powered | Non-powered |
| Catcher Capacity | 3.5 bushel |
| Mower Length w/ Catcher | 63.5" |
| Mower Width w/ Catcher | 56" |
