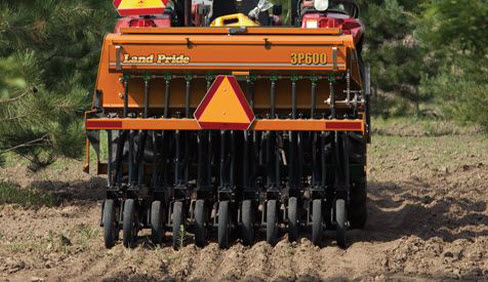

Land Pride 3P600

Double tap to zoom

Features	Benefits
Category l & ll hitch	Easy 3-point mounting on various types of tractors
Choice of 2x13 Single Press Wheels or 3x13 Center Rib Press Wheels	Press wheel options allow tailoring to various soil conditions.
2 bu/ft. Box Capacity	Larger box reduces downtime / more acres per fill.
1 3/4" Fluted Seed Cups with Powdered metal flutes	Delivers outstanding accuracy.
4 Speed Gearbox for various seed rates	Makes seed rates changes quick and painless.
Heavy Duty Coil Springs for down pressure on press wheels	Gives you the range from 90 to 180 lbs. of consistent down pressure.
T-Handle Opener Depth Adjustment	Provides 18 different positions for accurate depth.

Drill Model	3P600
Row Count	9	11
Row Spacing	7.5 in. (19.1 cm)	6.0 In. (15.2cm)
Swath	67.5 in. (171.5 cm)
Transport Width	74.1 in. (188 cm)
Length	57 in. (145 cm)
Working Height	61 in. (155 cm)
Weight, Maximum, Empty¹	1466 lbs. (665 kg)	1586 lbs (720kg)
Weight, Maximum, Full	2270 lbs. (1030 kg)	2390 lbs (1090kg)
Main Seed Box Capacity	12 bu. (420 liters)
Native Grass Box Capacity	1 bu. (42 liters)
Small Seeds Box Capacity	1 bu. (51 litre)
Seed Box Agitator	Optional in Main Seed box
Min. Tractor HP Req.²	40 hp (30 kW)
Hitch Type	Category I & II
Tire Size	5.70L x 8 Lug Type
Operating Depth	0 to 3.5 in. (0 to 8.9 cm)
1. See "Transporting" topic for typical weights of various configurations.
2. Power requirements vary significantly with conditions and practices.
