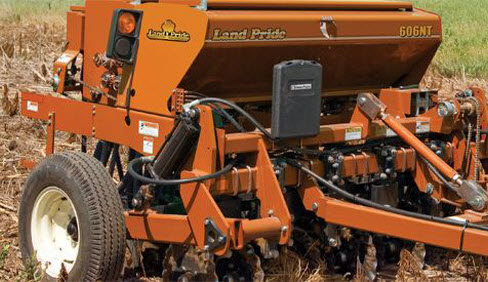

Land Pride 606NT
606NT Series Compact Drills 606NT
Overview:
Land Pride's 606NT is a 6' Pull-type No-Till Drill and features an end-wheel design that reduces side-loading on openers when operated on contours and curves, eliminating premature opener wear. This time-proven design allows the 606NT to stay on side hills and maintain accuracy going over hills and through valleys. Wit... + Read More
Features
| FEATURES | BENEFITS |
| Hydraulic depth stop | Provides infinite range of adjustments to tailor coulter depth to seeding depth. |
| Choice of 2x13 Single Press Wheel or 3x13 Center Rib Press Wheel | Press wheel options allow tailoring to various soil conditions. |
| Clevis Style Drawbar Hitch or Pintle Hitch | Allows you to hook up to multiple applications. |
| 2 bu/ft. Box Capacity | Larger box reduces downtime / more acres per fill. |
| 1 3/4" Fluted Seed Cups with Powdered Metal Flutes | Delivers outstanding accuracy. |
| Calibration Crank | Calibrating your machine will allow you to put on only the amount you desire. |
| Grease Bank | Lubricate all major components from one location. |
| 4 Speed Gearbox for various seed rates | Makes seed rates changes quick and painless and gives a wider range of adjustment. |
| Heavy Duty Coil Springs for down pressure on press wheels | Gives you the range from 90 to 180 lbs. of consistent down pressure. |
| T-Handle Opener Depth Adjustment | Provides 18 different positions for accurate depth. |
| Walkboard w/Steps | Allows you to refill seed from end to end. |
| Spring-Steel Coulter Mounting Bars Choice of two different coulters | Takes shock loads better. Give you a wide range of penetration and performances. |
Specifications
| Drill Model | 606NT820975 |
| Row Count | 9 |
| Row Spacing | 7.5 in. (19.1 cm) |
| Swath | 67.5 in. (171.5 cm) |
| Transport Width | 8 ft 10 in. (106.0 in., 269.2 cm) |
| Length | 11 ft 5 in. (137.0 in., 348.0 cm) |
| Working Height | 5 ft 1 in. (61.0 in., 154.9 cm) |
| Transport Clearance | 14.0 in. (35.6 cm) |
| Weight, Maximum, Empty¹ | 2700 lbs. (1225 kg) |
| Weight, Maximum, Full | 4600 lbs. (2087 kg) |
| Main Seed Box Capacity | 12 bu. (423 litre) |
| Native Grass Box Capacity | 6 bu. (211 litre) |
| Small Seeds Box Capacity | 1 bu. (51 litre) |
| Seed Box Agitator | Optional in Main Seed box, Standard in Native Grass box |
| Min. Tractor HP Req.² | 40 hp (30 Kw) |
| Hitch Type | Clevis or Pintle |
| Hydraulic Circuits Req. | 1 |
| Tire Size 5.70L x 8 Lug Type | 7.00-15 LT |
| Operating Depth | 0 to 3.5 in. (0 to 8.9 cm) |
| 1. See "Transporting" topic for typical weights of various configurations. | |
| 2. Power requirements vary significantly with conditions and practices. |
