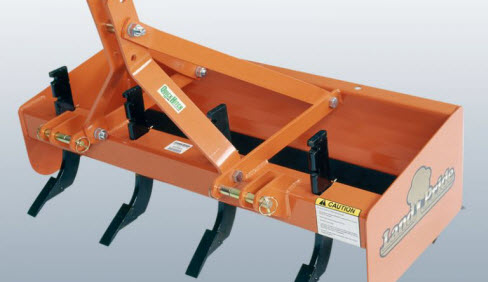

Land Pride BB0554
BB05 Series Box Scrapers BB0554
Overview:
The Land Pride BB05 Series Fixed Bar Box Scrapers are designed for Category 0, 1, and 1 limited 3-point hitch mounting to subcompact tractors. The 05 Series Box Scrapers are ideal for light-duty ripping, leveling, finish grading, and back-filling applications at small feedlots, outdoor arenas, building sites, and maint... + Read More
Features
| FEATURES | BENEFITS |
| 3/16” Side panels | Strongest in this class. |
| Square tubing shank support | Many competitors use angle iron. Box tubing is stronger. |
| Clevis -type lower 3-point hitch | Much stronger than pin type hitch. |
| 3-Position heat treated spring steel shanks | Offers flexibility for deep to shallow settings and Heat-treated for longevity. |
| Working widths | 48", 54" |
| HP Range | 17-25 HP |
| Bump-formed moldboard | While scraping, this allows the dirt to roll off the moldboard creating less drag resulting in lower HP requirements and faster working conditions. |
| 12 3/4” Moldboard height | Box Scraper can hold a lot of material. |
| Moldboard | Heavy moldboard with precise roll holds its shape under heavy loads. |
| Heat-treated, dimpled-on tips | Easy to replace tips that are heat treated for toughness. |
| Heat-treated, reversible and replaceable cutting blades | Heat-treated for hardness. Reversible so both edges can be used before replacing the cutting blades. |
| Rear backfill blade | Rear backfill blade allows for backfilling trenches or foundations. |
| Cat. 0, Cat.1 & Cat. Limited with Quick Hitch capability | Fits a wide variety of tractors. Quick hitch capability allows for easy hook-up. |
| Two welded braces extending from front to rear of bucket | These braces help keep the Box Scraper square under heavy loads. |
Specifications
| Model | BB0554 |
| Working Width | 54" |
| Capacity | 8 cu.ft. |
| Weight | 298 lbs. |
| Number of Shanks | 4 |
| Shank Material | 3/4" x 2 1/2" x 15" heat treated spring steel |
| Shank Penetration | 2- positions (Out of the ground or 2 3/8" below scraper end plates) |
| Shank Tip Construction | Replaceable heat treated dimpled-on tips |
| Shank Beam | 4" x 4" x 1/4" Square Tubing |
| Lift Mechanism | Manual lift with spring retainer at each shank |
| Moldboard | Bumped-formed moldboard -13 5/16" high |
| Side Panels | 3/16" thick x 12 3/4" high x 20" deep |
| Depth of Bucket | 18 1/2" |
| Bucket Reinforcement | Two welded braces to rear of moldboard |
| Cutting Blades | 2 ea. 1/2" x 6" high carbon, heat treated cutting edges; reversible and replaceable |
| Maximum H.P. Rating | 25 HP |
| A-Frame Material | 3/8" x 3" C1021 |
| 3-Point Hitch Type | Clevis type lower hitches Cat. 0, Cat. I & Cat. I Limited (Fits Land Pride Quick Hitch) |
