Land Pride BB1248

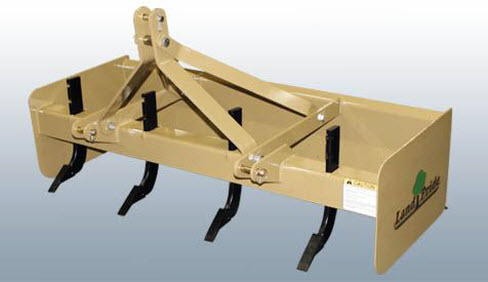

BB12 Series Box Scrapers BB1248
Overview:
The Land Pride BB12 Series Box Scrapers are designed for Category 1 - three point hitch or Quick-Hitch System mounting to tractors in the 30 hp range. These Box Scrapers are ideal for ripping, leveling, finish grading, and back-filling applications and offer forward and reverse cutting edges. The rear back-fill blade a... + Read More
Features
| FEATURES | BENEFITS |
| 3/16” Heavy side panels | Built heavy to handle the tough jobs. |
| Shank support | Many competitors use angle iron. Manufactured shank tube is more durable. |
| Clevis -type lower 3-point hitch | Much stronger than pin type hitch. |
| 3 Position heat treated spring steel shanks | Offers flexibility for deep to shallow settings and Heat-treated for longevity. |
| 48", 54", 60", 66" & 72" Working widths |
Offered in several widths to meet customer’s needs. |
| 17-30 HP Range | Fits a wide variety of tractors. |
| Formed moldboard | Formed moldboard keeps materials flowing which puts less drag on the Box Scraper, resulting in lower HP requirements and faster working conditions. |
| 15 3/8” Moldboard height | High material capacity. |
| Moldboard | Heavy moldboard holds its shape under heavy loads. |
| Heat treated dimpled-on tips | Easy to replace tips that are heat treated for toughness. |
| Heat-treated, reversible and replaceable cutting blades | Heat-treated for hardness. Reversible so both edges can be used before replacing the cutting blades. |
| Rear backfill blade | Rear backfill blade allows for backfilling trenches or foundations. |
| Warranty | One year parts & labor. |
| Category I 3-Point hitch with Quick Hitch capability |
Fits a wide variety of tractors. Quick Hitch capability allows for easy hook-up. |
Specifications
| Model | BB1248 |
| Working Width | 48" |
| Capacity | 9.4 cu. ft. |
| Weight | 316 lbs. |
| Number of Shanks | 4 |
| Shank Material | 3/4" x 2 1/2" x 15" heat treated spring steel |
| Vertical Shank Positions | 3- positions (2 1/4" above scraper end plates; 1/4" and 2 3/4" below scraper end plates) |
| Shank Tip Construction | Replaceable heat treated dimpled-on tips |
| Shank Beam | 4" x 4" x 1/4" Manufactured shank tube |
| Shank Lift Mechanism | Manual lift with spring retainer at each shank |
| Moldboard | Bumped-formed moldboard 15 3/8" vertical height |
| Side Panels | 3/16" thick x 16" high x 24" deep |
| Depth of Bucket | 23 1/8" |
| Bucket Reinforcement | Two welded braces to rear of bucket |
| Cutting Blades | 2 ea. 3/8" x 6" high carbon, heat treated cutting edges; reversible and replaceable |
| Maximum H.P. Rating | 30 Hp |
| A-Frame Material | 1/2" x 3" |
| 3-Point Hitch Type | Double strap lower hitch Cat. I (Fits Land Pride Quick Hitch) |
