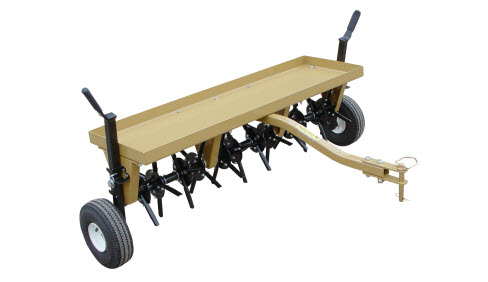

Land Pride CA0548

Double tap to zoom

Features	Benefits
Pull Type Clevis Hitch	Fits behind any small tractor, lawn tractor, utility vehicle or ATV with a pull tongue.
3 Sizes 40", 48" & 56"	Great sizes for residential home owners and other light applications.
Formed 10 Ga. end panels and center supports	Offers good strength and appearance.
Formed 12 Ga. weight tray with drain holes	Adds safety over spoon area, doesn't allow foreign weight object to fall into spoon area, keeps cores from being thrown forward.
16 Ga. x 1/2" I.D. hardened spring steel spoons with beveled edge	Penetrates the ground easier than spoons constructed of a heaver gage material and/or larger diameter bodies.
Individual Spoon Replacement	Requires removal of only two bolts to replace a worn-out spoon. Don't have to disassemble the whole rotor section to get to the spoons.
Gang greasing	Each gang has a grease zerk for smooth rotation.
8 1/2" Spoon spacing (forward travel). 4" Spoon spacing laterally	Offers optimum core pulling pattern & aeration.
4.2 Aeration cores per sq. ft.	Provides good aeration per square foot.
Weight tray	Additional weight can be easily added to the aerator.

Model No.	CA0548
Working Width	44"
Overall Width	58"
Overall Length	48" (With wheels raised for field work)
Overall Height (With support stands up)	27 1/4"
Weight	106 lbs.
Max. allowable added weight in Weight Tray	300 lbs.
Number Of Spoons	48
Spoon Material	16Ga. hardened spring steel, Replaceable.
Spoon Spacing in forward travel	8 1/2" 4"
Spoon Penetration	3" Depending on ground conditions and added weights.
Plug Size	1/2" Diameter
Number of Gangs	6
Gang Spacing	8"
Hitch	Pull type clevis hitch
