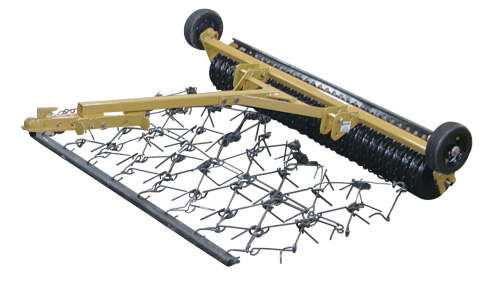

Land Pride DRG04

Double tap to zoom

FEATURES	BENEFITS
Special tine construction	Tines don’t spread apart at the center. Heavy residue surfaces quickly without bunching or becoming clogged. Tines follow the contour of the ground providing maximum coverage.
1/2" x 3 1/2" Long cold-formed high carbon steel tines	Tines are constructed of strong materials to eliminate breakage and provide long wear life.
60 Tines per 4 ft. of width	High number of tines for breaking-up clods and leveling soil profile.
Tines are offset	Provides uniform coverage without making ridges.
Drag Mat Position	Tines Point Up: Gentle action for covering fertilizer & seed, smoothing & leveling soil surfaces and scattering manure droppings. Excellent for grassy applications.
Light Penetration Position	Tines point down & back: Stronger action for working fertilizer & seed into soil and turf, breaking up and leveling heavy soil, fluff & leveling arenas, aerating soil for faster.
Deep Penetration Position	Tines point down & forward: Aggressive action for loosening and breaking-up soil.
Low HP requirements	Easy to pull with Utility vehicles, lawn tractors, small tractors and pickups.
No lubrication or adjustments	Saves time and you don’t get dirty from grease or oil.

Model	DRG04
Weight	89 lbs.
Horsepower Requirements	8 hp
Blanket size	4’ wide x 4’ long
Number of tines	60
Tine diameter and length	1/2" dia. x 4 1/2" lg.
Tine construction	Cold-formed from high-carbon steel
Hitch Type	Two log chains attached from pull ring to drawbar.
Drawbar	1 5/8" dia. x 4" w/ S-hook mounting holes on 9" centers
