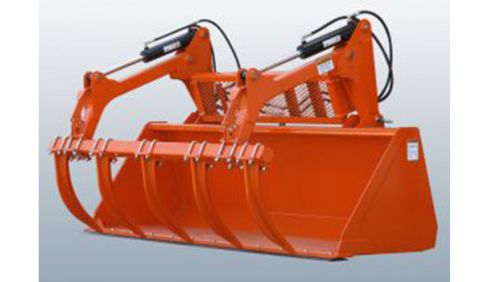

Land Pride GB2590

Double tap to zoom

Bucket
Features	Benefits
3/16" Grade 50 high strength steel shell	Improved strength & wear versus mild steel
Five 1/2" x 5" bottom wear plates	Extends bucket life
Reinforced bucket corners & side edges	Adds strength & extends bucket life
5/8" x 6" drilled cutting edge	Accepts optional bolt on cutting edge
Optional 5/8" x 6" bolt on cutting edge	Reversible and replaceable; extends life of cutting edge
Upper torque tube/lower torque channel	Prevents twisting
90", 96" & 108" widths available	Fits wide range of tractors
1.0-1.2 Cu. Yd. struck capacity	Allows high volume material handling
Quick release grapple mounts	Allows grapple to be installed/removed quickly
Grapple
Features	Benefits
High strength cast grapple tines	Stronger and better looking than welded tines
Tubular steel construction	Resists twisting
Parking stands	Allows grapple to be stored upright when not in use
Spill guard	Helps contain loose material
Dual 3" 3500psi cylinders	Large cylinders handle high pressure & loads
Hose kit included	Hoses provided to center tees or valve
Optional lock valve	Prevents hydraulic bleed-off / improves cylinder control
Quick release grapple	Four pin mount system
Large 84" opening	Handles large bales and high volumes of material
Greasable pivot points	Extends grapple life

Model	GB2590
Hitch Style	Universal Quick-Attach
Weight (Optional BOE and Valve included)	1618 lbs.
Bucket Capacity (Struck)	1.00 cu yd
Overall Width	90"
Grapple Opening (With BOE)	84"
Number of Tines	4
Tine Construction	Bolt-on ductile iron tine with reinforced gussets
Tine Thickness	3/4"
Hydraulic Cylinder	Dual 3" x 14" x 1 1/2" rod
Maximum Pressure Rating	3500 psi
