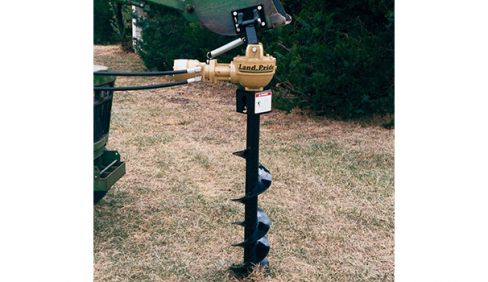

Land Pride HD25
HD25 Series Post Hole Diggers HD25
Overview:
The Land Pride HD25 Series Post Hole Diggers are hydraulically driven and accommodate augers ranging from 6" to 24" in diameter. They are available with a bolt-on mount for mounting to the side of a bucket on a tractor front-end loader or with a boom for mounting to a category 1 or 2 three-point hitch. The HD25 series ... + Read More
Features
| FEATURES | BENEFITS |
| 3-Point Cat. 1 or 2 Hitch | Fits a wider variety of tractors by fitting Cat. 1 & 2. |
| Bucket Mount Option | Easily bolt mounting plate to the side of the front loader bucket, and use the bucket to help push the auger into the ground |
| 3-Point yoke: 2 7/8" O.D. | 3/16" wall thickness for strength and durability. |
| 3-Point boom: Reinforced 3 1/2" O.D. |
7/32" Wall thickness reinforced with 3/8" x 2" bar makes for a strong boom. |
| Large selection of augers | Variety of Dirt Auger and Rock Auger sizes and styles to suit many applications. |
| Large selection of Bolt-on Rock Heads (accessory) |
All sizes of Land Pride HD25 and HD35 Pengo Dirt Augers can be converted to Rock Augers with this accessory. |
| Auger flighting | Constant thickness on 1/4" flighting vs. tapered. |
| Replaceable cast alloy steel point with 3 fishtail tips |
3 Fishtail tips will last 50% longer than 2 tips. Cast alloy steel point can easily be replaced when worn or damaged. |
| Replaceable dual angle teeth | Dual angle teeth can be changed from 40° to 50° to increase attack angle. Teeth can easily be replaced when worn or damaged. |
| 25 Series | Use with hydraulic systems that pump at 5 –12 GPM, at 1500 – 3500 PSI. |
| 35 Series | Use with hydraulic systems that pump at 10-25 GPM, at 1500 – 3500 PSI. |
| 2" Output shaft | 2" Handles torque loads that can be transmitted from hard ground. Fairly standard size for the industry, fits many competitive augers. |
| 5 Year gearbox warranty | Shows our confidence in the gearbox integrity |
| Hydraulic hose | Standard on 3-point Post Hole Diggers and skid/loader mount Post Hole Diggers. Optional on bucket mount Post Hold Diggers due to distance varying on tractor models. |
| 6", 9", 12", & 18" Diameter auger options |
Wide range of auger diameters to choose from. |
| 48" Auger Length | Auger is provided in industry standard length. |
Specifications
| Model | HD25 |
| Mount Type | 3-Point Mount/Skid/Loader Mount/Bucket Mount |
| Hydraulic hoses | Standard/Standard/Optional |
| Maximum auger RPM | 101 RPM |
| Gallons per minute rating | 5 -12 GPM @ 1500 to 3500 PSI |
| Max torque @ 2500 PSI | 700 ft-lbs |
| Weight with 6" auger | 235 lbs./268 lbs./170 lbs. |
| Auger length | 48" |
| Auger flighting thickness | 1/4" |
| Auger pipe | 2 1/2" dia. |
| Auger teeth | Forged, individually replaceable 40 Degree angle installed on flat side 50 Degree angle installed on angled side |
| Number of teeth | (6" - 2 teeth) (9" & 12" - 4 teeth) (15" - 5 teeth) (18" - 6 teeth) (24" - 10 teeth) |
| Pilot | Cast steel, 3 drill points |
| Auger drive | Hydraulic |
| Gearbox | 3.18:1 Ratio |
| Gearbox oil capacity & type | 4.7 Pints of gear lube 80-90W EP |
| Output shaft on gearbox | 2" O.D. round |
| Hitch type | 3-Point Cat I or II/ Skid/Loader Mount/Bucket Mount |
| Yoke | 2 7/8" O.D. |
| Boom | Reinforced 3 1/2" O.D. |
| Options and Accessories | |
| Auger extensions (Accessory | 7" and 14" extensions available |
| Dirt Auger sizes (Option) | 6", 9", 12", 15", or 18" |
| Bolt-on Rock Head (Accessory) | 6", 9", 12", 15", or 18" |
| Rock Auger sizes (Option) | 6", 9", 12", 15", or 18" |
| Tree Auger size | 24" |
| Hydraulic hoses | Not applicable |
| Hydraulic Down Pressure Kit |
Available |
| Storage stand | Available |
