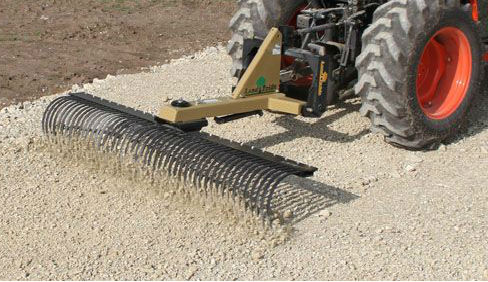

Land Pride LR1660
LR16 Series Landscape Rakes LR1660
Overview:
The LR16 Series Landscape Rakes from Land Pride perform final soil surface preparation and reshaping soil and/or aggregate profile and offer angling capabilities to meet specific finishing needs. Optional gauge wheel packages are also available to enable a more consistent finish over uneven or undulating terrain. The L... + Read More
Features
| FEATURES | BENEFITS |
| 60", 72", 84", 96" Working Widths | Meets a wide range of customer needs. |
| LR16 Series: 20-40 Tractor HP Range LR26 Series: 25-60 Tractor HP Range |
Fits many tractors with a Cat. l 3-Point hitch. |
| Quick Hitch Adaptable | Fits Land Pride Quick Hitch for a quick and easy one person hook-up. |
| Retractable Park Stand | Keeps the frame off the ground and makes hook-up easier. |
| 3 1/2" Pivot Tube | Heavy frame tube. Heaviest in its class. |
| 16 1/2" Rake Height | Can move a great deal of material. |
| Rake Teeth Support Channel | Design with channel support. This design supports the rake teeth better than competitor models. Prevents teeth entanglement and keeps attachment hardware from working loose. |
| 5/16’ x 1" High Carbon Spring Steel Teeth |
Sized to eliminates premature bending and tooth breakage. Constructed of materials that have "memory" to spring back to shape. |
| Individual Replaceable Teeth | Makes replacing a damaged tooth quick and easy without removing all of the teeth. |
| Angle 7 Positions | Versatility in operation. Vary how much material to move. |
| Hydraulic Angle Kit (Accessory) | Allows the operator to change rake angle from the tractor seat. |
| Dual Gauge Wheels (Accessory) | Gives operator better depth control. Wide & narrow wheels available. |
| Flip-Down Grader Blade with End Plates (Accessory) |
Enables the rake to perform light blading duties for moving and leveling dirt as well as other materials. Grader blade can be flipped up when not in use. |
| Rear Blade Attachment (Accessory) | The rake assembly can be removed from the main frame and a Rear Blade attached to give the Land Pride Rake versatility. |
Specifications
| Model | LR1660 |
| Rake Width | 60" |
| Approximate Weight (lbs.) | 241 |
| Number of Teeth | 30 |
| Horsepower Rating | 20-40 |
| Hitch Category | Cat. l Fits Land Pride Quick Hitch |
| Pivot Tube Diameter | 3 1/2" |
| Rake Height | 16 1/2" |
| Park Stand | Standard |
| Individual Replaceable Teeth | Standard |
| Teeth Size | 5/16" x 1" Wide |
| Teeth Spacing | 2" Centers |
| Teeth Material | High Carbon Spring Steel |
| Rake Angle Manually Hydraulically (Accessory) |
7 Forward positions, Maximum 45° Right or Left in 15° Increments Infinite number of forward positions, maximum 45° Right or Left |
| Dual Gauge Wheels* (Accessory) | Dual Narrow Width Wheels 13" x 4" x 6" or Dual Wide Width Wheels 13" x 6.5" x 6" |
| Flip Down Grader Blade (Accessory) | Flip Down Self Supporting Grader Blade with Blade-up Locking Handles and Locking Pins |
| Rear Blade Attachment (Accessory) | Available in 60", 72" & 84" Working Widths |
| * Dual gauge wheels are capable of supporting Flip Down Grader Blade Accessory. | |
